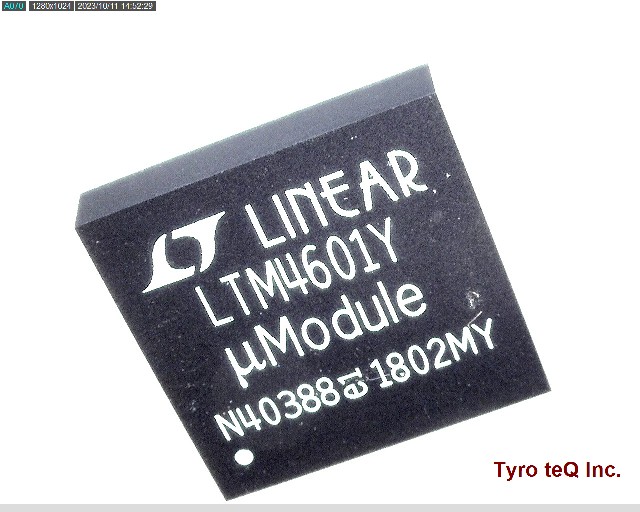

LTM4601EY#PBF

Name: LTM4601EY#PBF
Brand: LINEAR TECH
SKU: 220218243-0000-0000-0000

LTM4601EY#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM4601EY#PBF の詳細情報

型番	LTM4601EY#PBF
メーカー	LINEAR TECH
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM0.6V TO 5V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	20 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	S-PBGA-B118
Length	15 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	118
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	12 A
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA118,12X12,50
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	3.62 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	PUSH-PULL
Switching Frequency-Max	850 kHz
Temperature Grade	INDUSTRIAL

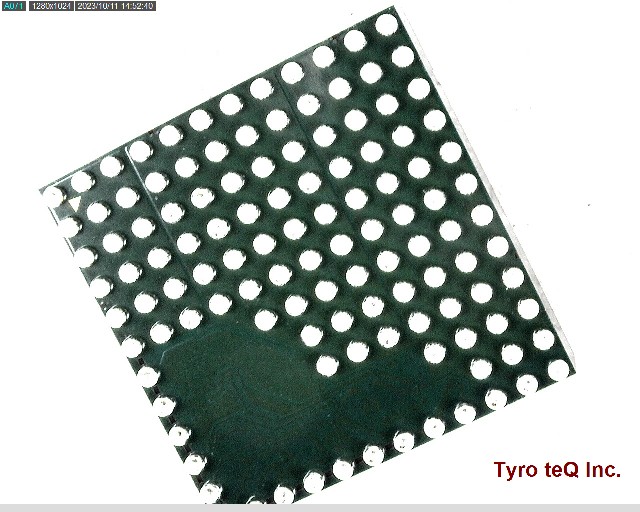

Terminal Form	BALL
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	15 mm
