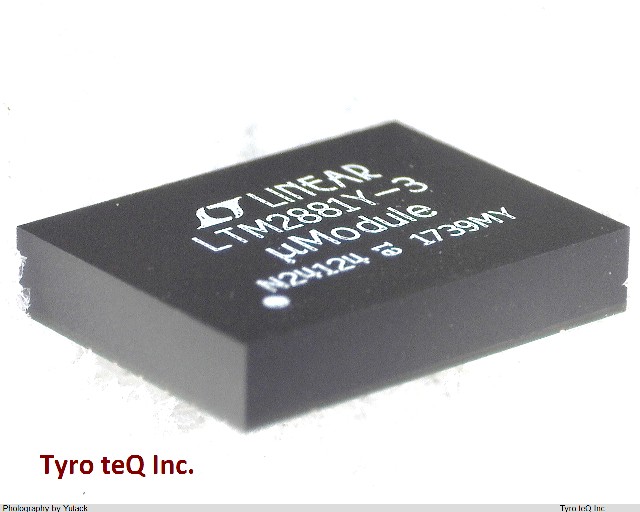

LTM2881IY-3#PBF

Name: LTM2881IY-3#PBF
Brand: LINEAR TECH
SKU: 220215322-0000-0000-0000

LTM2881IY-3#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM2881IY-3#PBF の詳細情報

型番	LTM2881IY-3#PBF
メーカー	LINEAR TECH
DLA Qualification	Not Qualified
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-485-A; TIA-485-A; EIA-422
J-STD-609 Code	e1
JESD-30 Code	R-PBGA-B32
JESD-609 Code	e1
Length	15 mm
Length (mm)	15
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Out Swing-Min (V)	1.5
Output Low Current-Max (mA)	4
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA32,8X11,50
Package Shape	RECTANGULAR
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	245
Power Supplies (V)	3.3
Qualification Status	Not Qualified
Receive Delay-Max	140 ns
Receive Delay-Max (ns)	140
Receiver Number of Bits	1
Seated Height-Max	3.62 mm
Seated Height-Max (mm)	3.62
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	25
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	1.62 V
Supply Voltage-Min (V)	1.62
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Supply Voltage1-Max	3.6 V
Supply Voltage1-Max (V)	3.6
Supply Voltage1-Min	3 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN SILVER COPPER

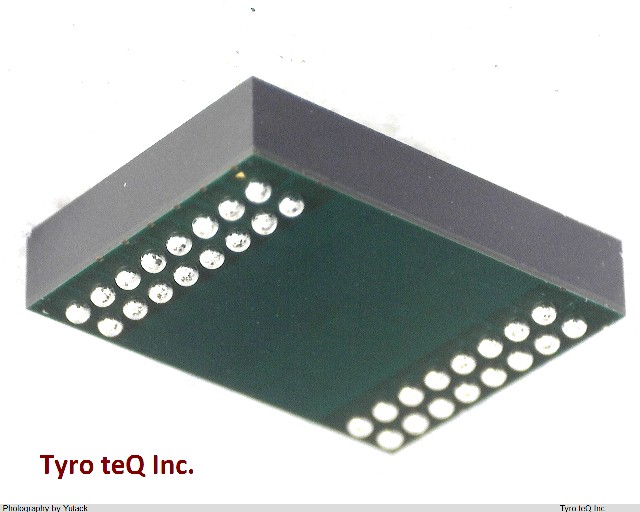

Terminal Form	BALL
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
