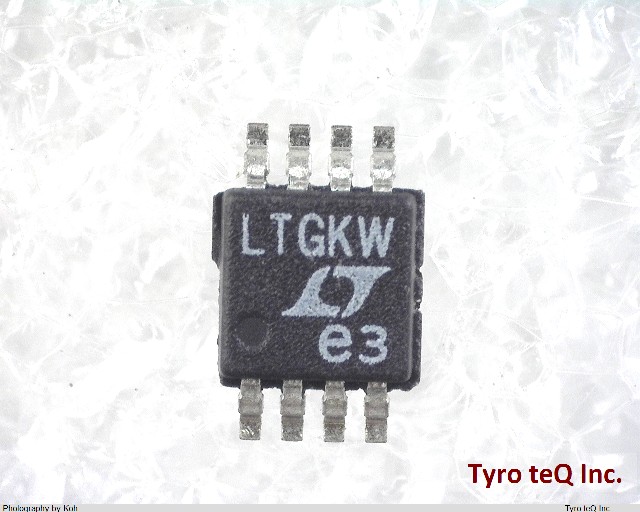

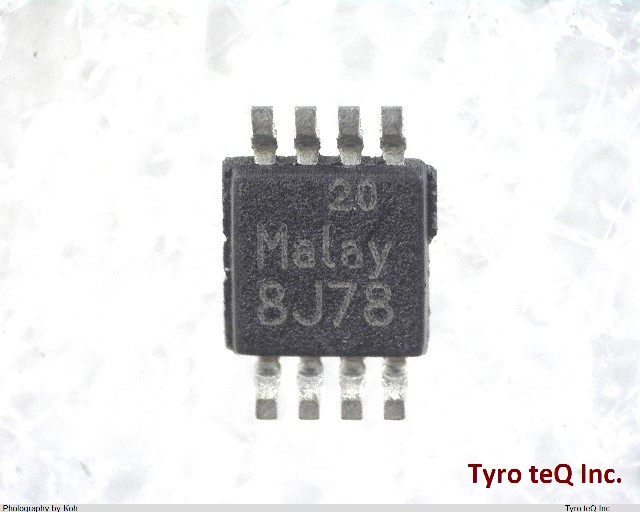

LTC6752IMS8-2#PBF

Name: LTC6752IMS8-2#PBF
Brand: LINEAR TECH
SKU: 220218254-0000-0000-0000

LTC6752IMS8-2#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC6752IMS8-2#PBF の詳細情報

型番	LTC6752IMS8-2#PBF
メーカー	LINEAR TECH
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	2.1 uA
Average Bias Current-Max (IIB) (uA)	2.1
Bias Current-Max (IIB) @25C (uA)	1.25
Input Offset Voltage-Max	8500 uV
Input Offset Voltage-Max (uV)	8500
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Response Time-Nom	5.5 ns
Response Time-Nom (ns)	2.9
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Comparator
Supply Current-Max (mA)	2.5
Supply Voltage Limit-Max	5.5 V
Supply Voltage Limit-Max (V)	5.5
Supply Voltage-Nom (V)	2.5
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
