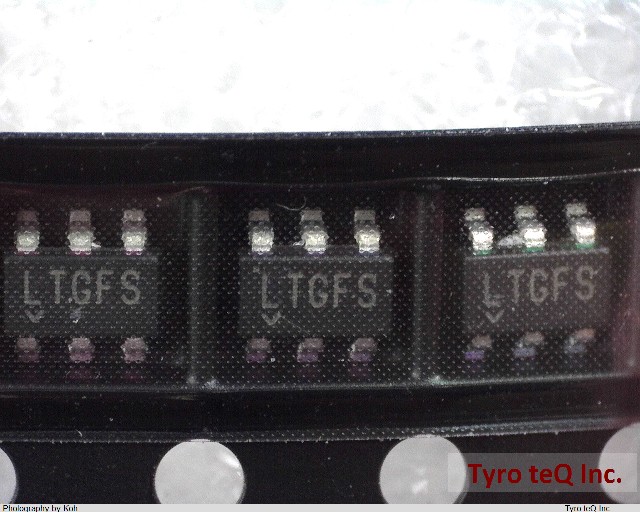

LTC6268IS6#TRMPBF

Name: LTC6268IS6#TRMPBF
Brand: LINEAR TECH
SKU: 220223965-0000-0000-0000

LTC6268IS6#TRMPBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC6268IS6#TRMPBF の詳細情報

型番	LTC6268IS6#TRMPBF
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	9.0E-7 uA
Average Bias Current-Max (IIB) (uA)	9.0E-7
Common-mode Reject Ratio-Nom	77 dB
Common-mode Reject Ratio-Nom (dB)	77
Input Offset Voltage-Max	4500 uV
Input Offset Voltage-Max (uV)	4500
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1 mm
Seated Height-Max (mm)	1
Slew Rate-Nom	400 V/us
Slew Rate-Nom (V/us)	400
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	5.5 V
Supply Voltage Limit-Max (V)	5.5
Supply Voltage-Nom (V)	3.3
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	420000 kHz
Unity Gain BW-Nom (kHz)	420000
Width	1.625 mm
Width (mm)	1.625
