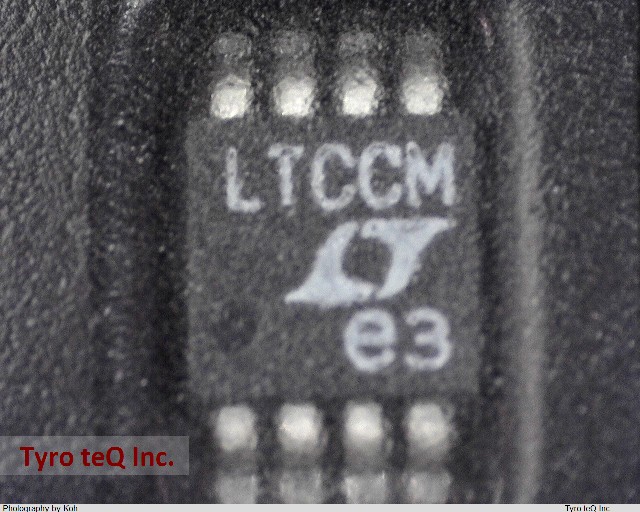

LTC6244IMS8

Name: LTC6244IMS8
Brand: LINEAR TECH
SKU: 220075434-0000-0000-0000

LTC6244IMS8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC6244IMS8 の詳細情報

型番	LTC6244IMS8
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	7.5E-5 uA
Average Bias Current-Max (IIB) (uA)	7.5E-5
Common-mode Reject Ratio-Nom	105 dB
Frequency Compensation	YES
Input Offset Voltage-Max	300 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e0
Length	3 mm
Low-Bias	YES
Low-Offset	YES
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	0 V
Neg Supply Voltage-Nom (Vsup)	0 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	3/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Min	18 V/us
Slew Rate-Nom	35 V/us
Sub Category	Operational Amplifier
Supply Current-Max	14.8 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	50000 kHz
Voltage Gain-Min	85000
Wideband	NO
Width	3 mm
