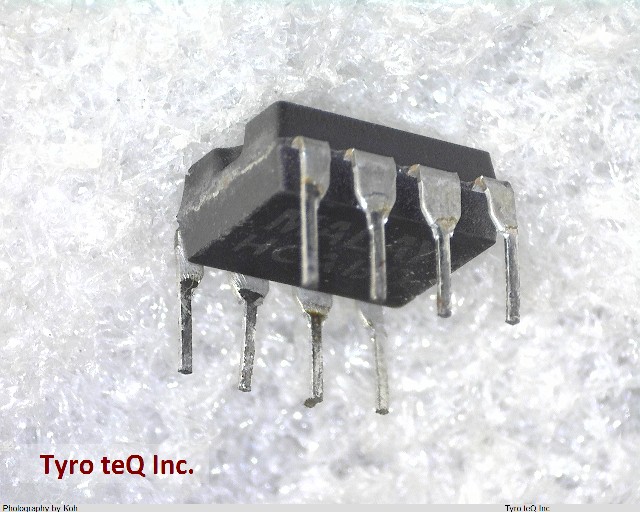

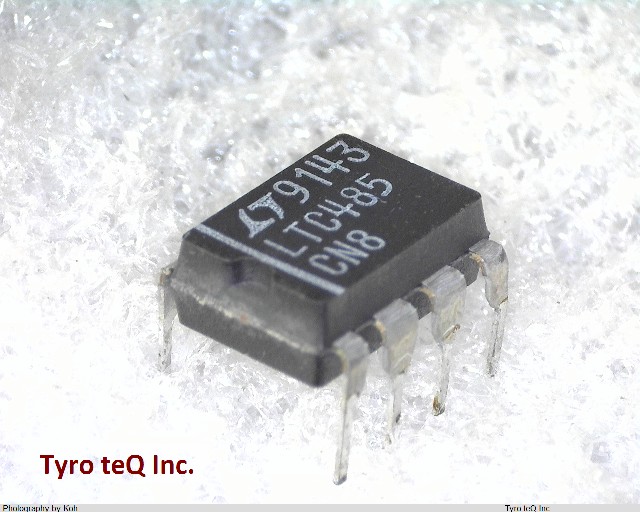

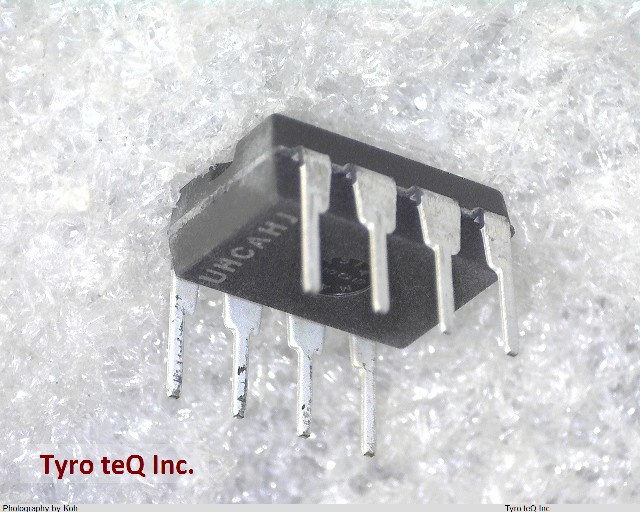

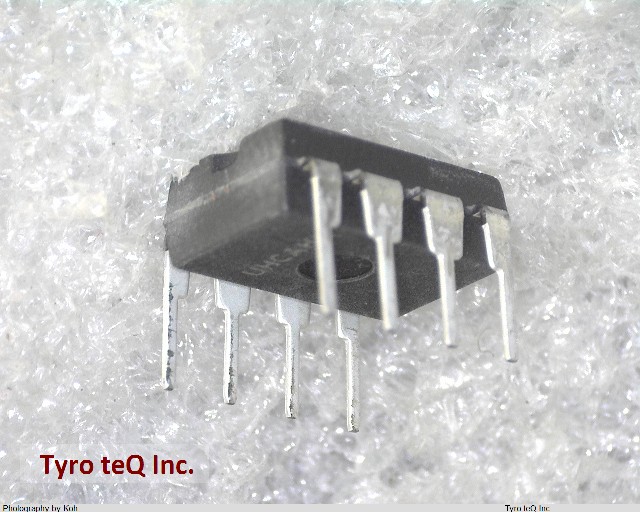

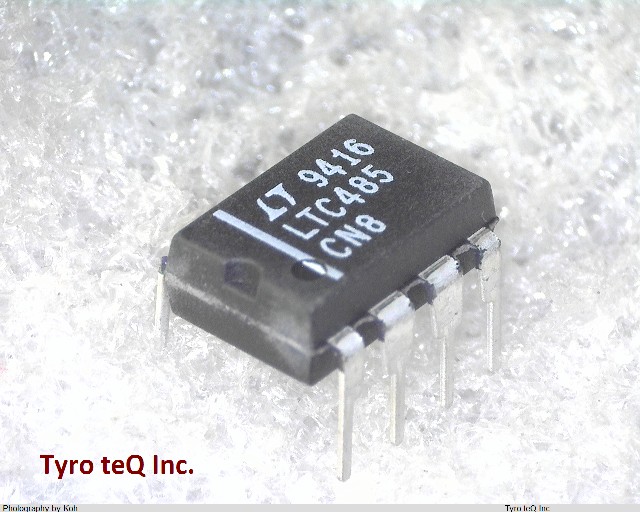

LTC485CN8 データシート

Name: LTC485CN8
Brand: LINEAR TECH
SKU: 220004173-0000-0000-0000

LTC485CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC485CN8 の詳細情報

型番	LTC485CN8
メーカー	LINEAR TECH
データシート
Additional Feature	COMMON I/O; TRISTATABLE RECEIVER; 1 RECEIVER ACTIVE UNDER SHUTDOWN
DLA Qualification	Not Qualified
Differential Output	YES
Driver Number of Bits	1
High Level Input Current-Max (A)	2.0E-6
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422; EIA-485
J-STD-609 Code	e0
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Characteristics	3-STATE
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	235
Qualification Status	Not Qualified
Receive Delay-Max	200 ns
Receive Delay-Max (ns)	200
Receiver Number of Bits	1
Seated Height-Max	3.937 mm
Seated Height-Max (mm)	3.937
Supply Voltage-Max	5.25 V
Supply Voltage-Max (V)	5.25
Supply Voltage-Min	4.75 V
Supply Voltage-Min (V)	4.75
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transmit Delay-Max	50 ns
Transmit Delay-Max (ns)	50
Width	7.62 mm
Width (mm)	7.62
