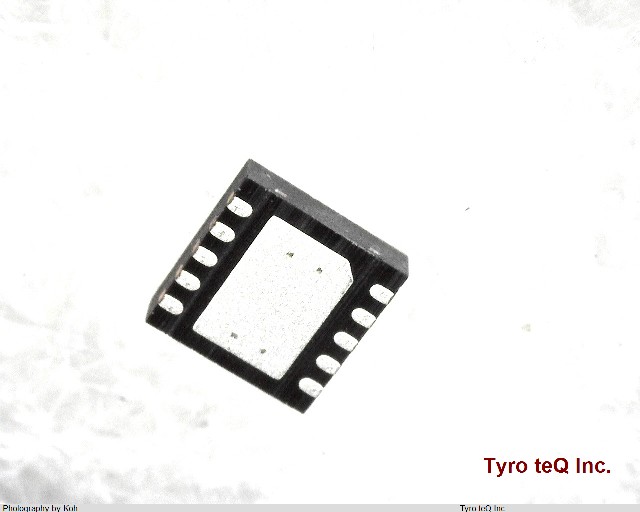

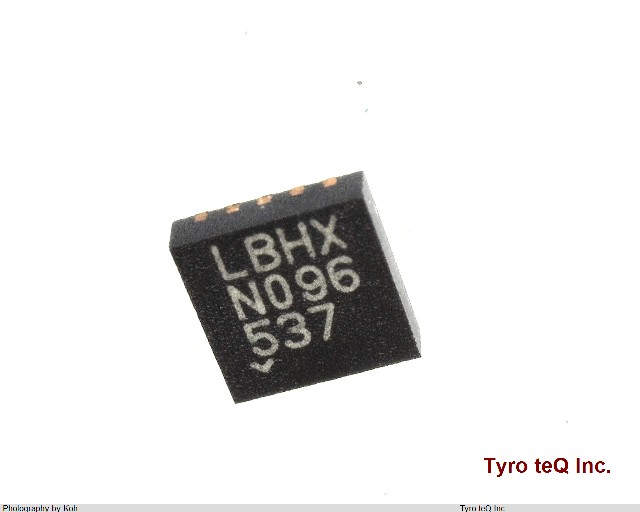

LTC4063EDD#PBF

Name: LTC4063EDD#PBF
Brand: LINEAR TECH
SKU: 400054644-0000-0000-0000

LTC4063EDD#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC4063EDD#PBF の詳細情報

型番	LTC4063EDD#PBF
メーカー	LINEAR TECH
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 1.2 TO 4.2V
Analog IC - Other Type	BATTERY CHARGE CONTROLLER
DLA Qualification	Not Qualified
Input Voltage-Max	8 V
Input Voltage-Min	4.3 V
Input Voltage-Nom	5 V
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-N10
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	1 A
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC10,.12,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Supply Current-Max (mA)	0.8
Supply Voltage-Max (V)	8
Supply Voltage-Min (V)	4.3
Supply Voltage-Nom (V)	5
Surface Mount	YES
Switcher Configuration	SINGLE
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
