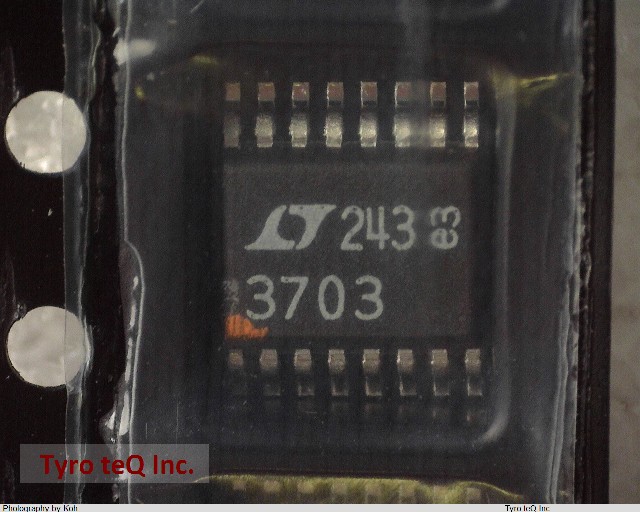

LTC3703EGN#TRPBF

Name: LTC3703EGN#TRPBF
Brand: LINEAR TECH
SKU: 220222309-0000-0000-0000

LTC3703EGN#TRPBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC3703EGN#TRPBF の詳細情報

型番	LTC3703EGN#TRPBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	15 V
Input Voltage-Max (V)	15
Input Voltage-Min	9.3 V
Input Voltage-Min (V)	9.3
Input Voltage-Nom	10 V
Input Voltage-Nom (V)	10
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	4.89 mm
Length (mm)	4.89
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	5 A
Output Current-Max (A)	5
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	PUSH-PULL
Switching Frequency-Max	330 kHz
Switching Frequency-Max (kHz)	330
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Pitch (mm)	0.635
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.899 mm
Width (mm)	3.899
