LTC3539EDCB#PBF Lineartech

LTC3539EDCB#PBF - LINEAR TECH の商品詳細ページです。

1

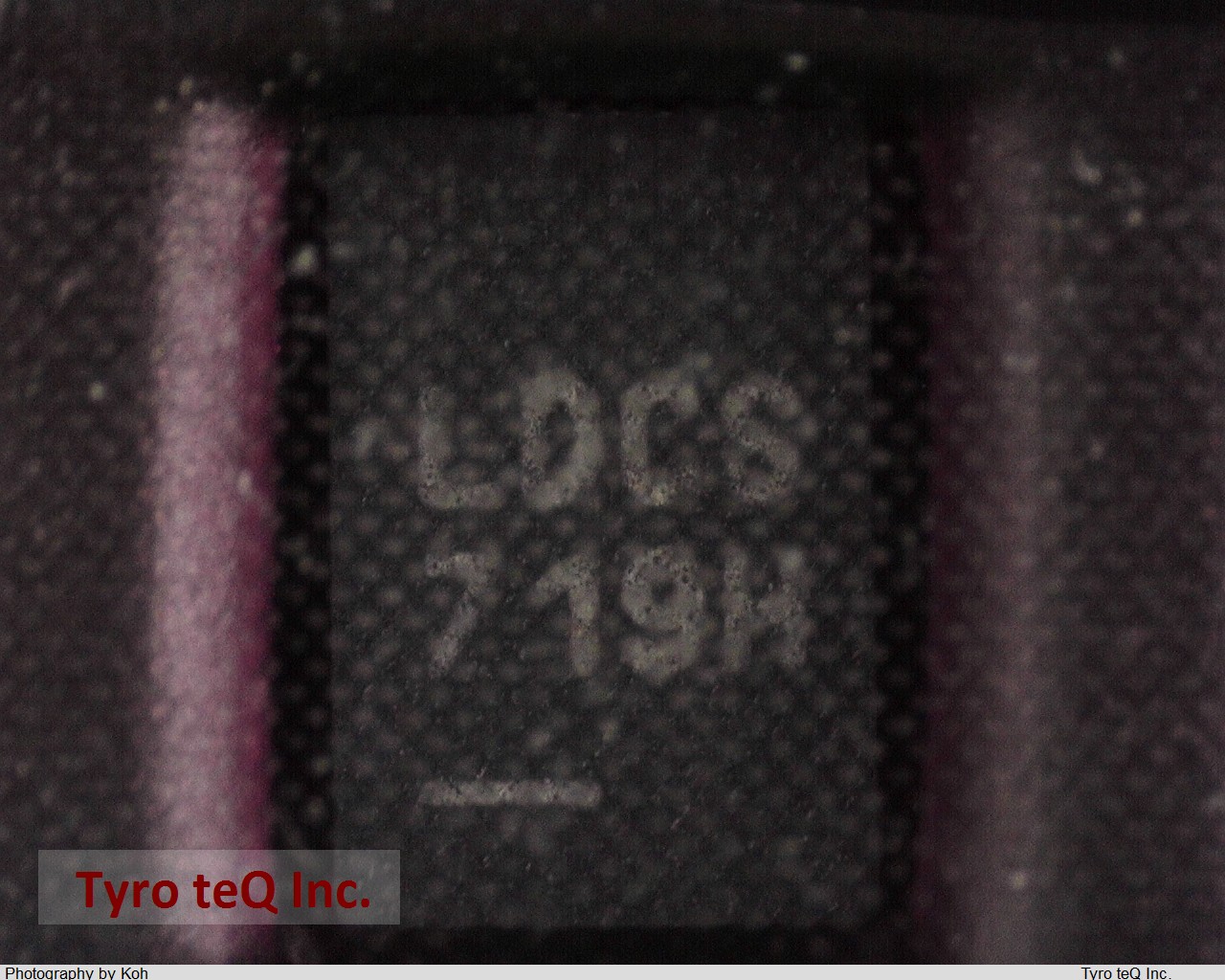

LTC3539EDCB#PBF
  • LTC3539EDCB#PBF
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LTC3539EDCB#PBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LTC3539EDCB#PBF
メーカーLINEAR TECH
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 1.5V TO 5.25V
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
DLA Qualification Not Qualified
Input Voltage-Max 5 V
Input Voltage-Max (V) 5
Input Voltage-Min 0.5 V
Input Voltage-Min (V) 0.5
Input Voltage-Nom 1.2 V
Input Voltage-Nom (V) 1.2
J-STD-609 Code e3
JESD-30 Code R-PDSO-N8
JESD-609 Code e3
Length 3 mm
Length (mm) 3
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Max (Cel) 85
Operating Temperature-Min 0 Cel
Operating Temperature-Min (Cel) 0
Output Current-Max 2.6 A
Output Current-Max (A) 2.6
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC8,.11,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 0.8 mm
Seated Height-Max (mm) 0.8
Sub Category Switching Regulator or Controllers
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 1300 kHz
Switching Frequency-Max (kHz) 1300
Technology CMOS
Temperature Grade OTHER
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.45 mm
Terminal Pitch (mm) 0.45
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 2 mm
Width (mm) 2
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/

LTC3539EDCB#PBFのレビュー

LTC3539EDCB#PBF のご注文について
