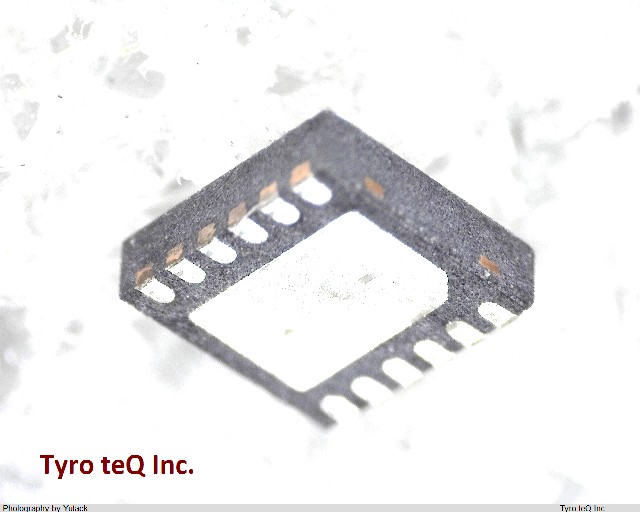

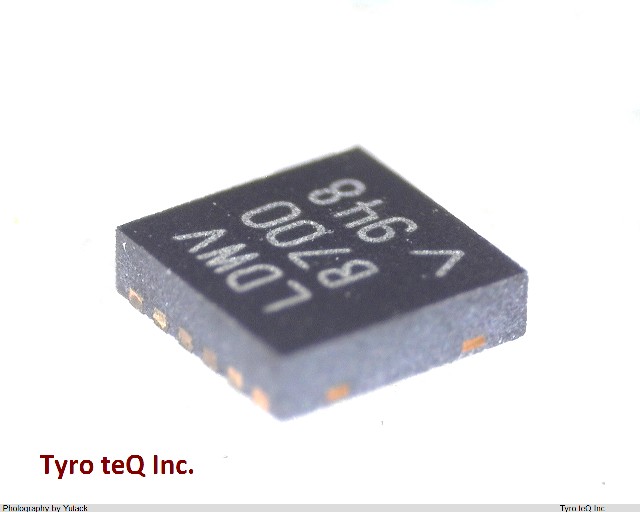

LTC3535EDD#PBF

Name: LTC3535EDD#PBF
Brand: LINEAR TECH
SKU: 220193149-0000-0000-0000

LTC3535EDD#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC3535EDD#PBF の詳細情報

型番	LTC3535EDD#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	5 V
Input Voltage-Max (V)	5
Input Voltage-Min	0.5 V
Input Voltage-Min (V)	0.5
Input Voltage-Nom	1.2 V
Input Voltage-Nom (V)	1.2
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-N12
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	12
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Voltage-Nom	3.3 V
Output Voltage-Nom (V)	3.3
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC12,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	1250 kHz
Switching Frequency-Max (kHz)	1250
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.45 mm
Terminal Pitch (mm)	0.45
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
