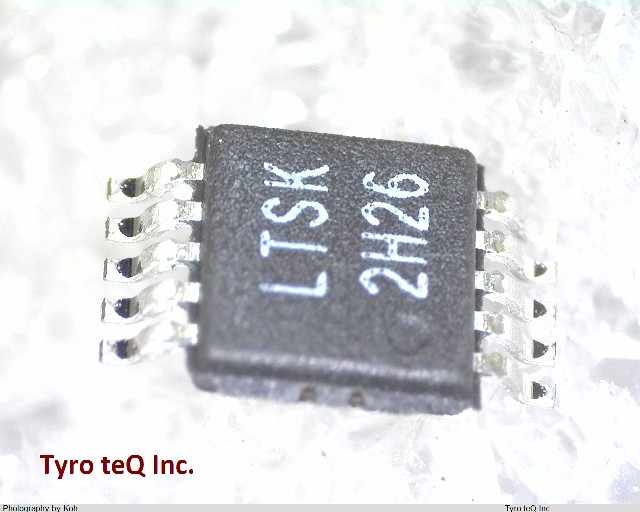

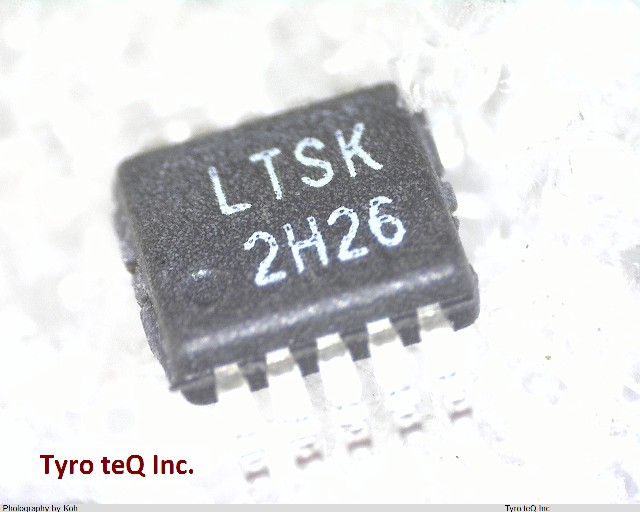

LTC3402EMS データシート

Name: LTC3402EMS
Brand: LINEAR TECH
SKU: 220007672-0000-0000-0000

LTC3402EMS - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC3402EMS の詳細情報

型番	LTC3402EMS
メーカー	LINEAR TECH
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	5 V
Input Voltage-Max (V)	5
Input Voltage-Min	0.5 V
Input Voltage-Min (V)	0.5
Input Voltage-Nom	1.2 V
Input Voltage-Nom (V)	1.2
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G10
JESD-609 Code	e0
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	2.5 A
Output Current-Max (A)	2.5
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP10,.19,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	3000 kHz
Switching Frequency-Max (kHz)	3000
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
