LTC3250ES6-1.5#TRMPBF Lineartech

LTC3250ES6-1.5#TRMPBF - LINEAR TECH の商品詳細ページです。

1

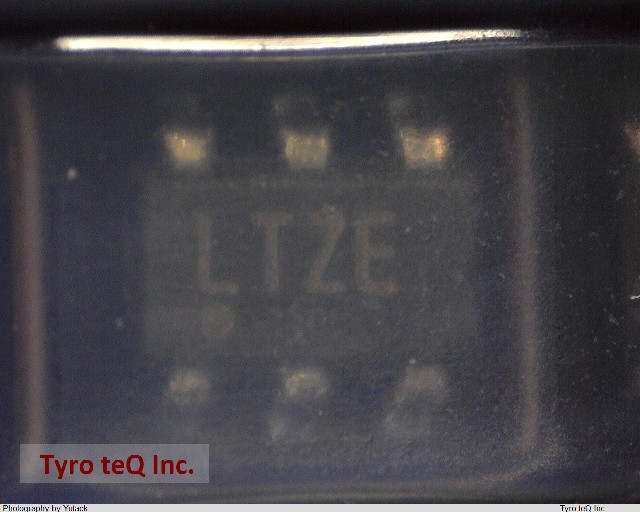

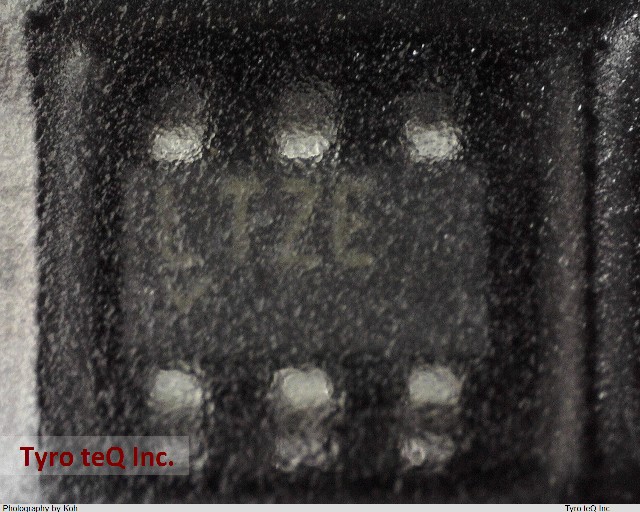

LTC3250ES6-1.5#TRMPBF
  • LTC3250ES6-1.5#TRMPBF
  • LTC3250ES6-1.5#TRMPBF
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LTC3250ES6-1.5#TRMPBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LTC3250ES6-1.5#TRMPBF
メーカーLINEAR TECH
Analog IC - Other Type SWITCHED CAPACITOR REGULATOR
DLA Qualification Not Qualified
Input Voltage-Max 5.5 V
Input Voltage-Max (V) 5.5
Input Voltage-Min 2.7 V
Input Voltage-Min (V) 2.7
Input Voltage-Nom 3.6 V
Input Voltage-Nom (V) 3.6
J-STD-609 Code e3
JESD-30 Code R-PDSO-G6
JESD-609 Code e3
Length 2.9 mm
Length (mm) 2.9
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 6
Operating Temperature-Max 70 Cel
Operating Temperature-Max (Cel) 70
Operating Temperature-Min 0 Cel
Operating Temperature-Min (Cel) 0
Output Current-Max 0.35 A
Output Current-Max (A) 0.35
Output Voltage-Nom 1.5 V
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Qualification Status Not Qualified
Seated Height-Max 1.45 mm
Seated Height-Max (mm) 1.45
Sub Category Other Analog ICs
Surface Mount YES
Switcher Configuration DOUBLER INVERTER
Switching Frequency-Max 1800 kHz
Switching Frequency-Max (kHz) 1800
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Pitch (mm) 0.95
Terminal Position DUAL
Width 1.625 mm
Width (mm) 1.625
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/
