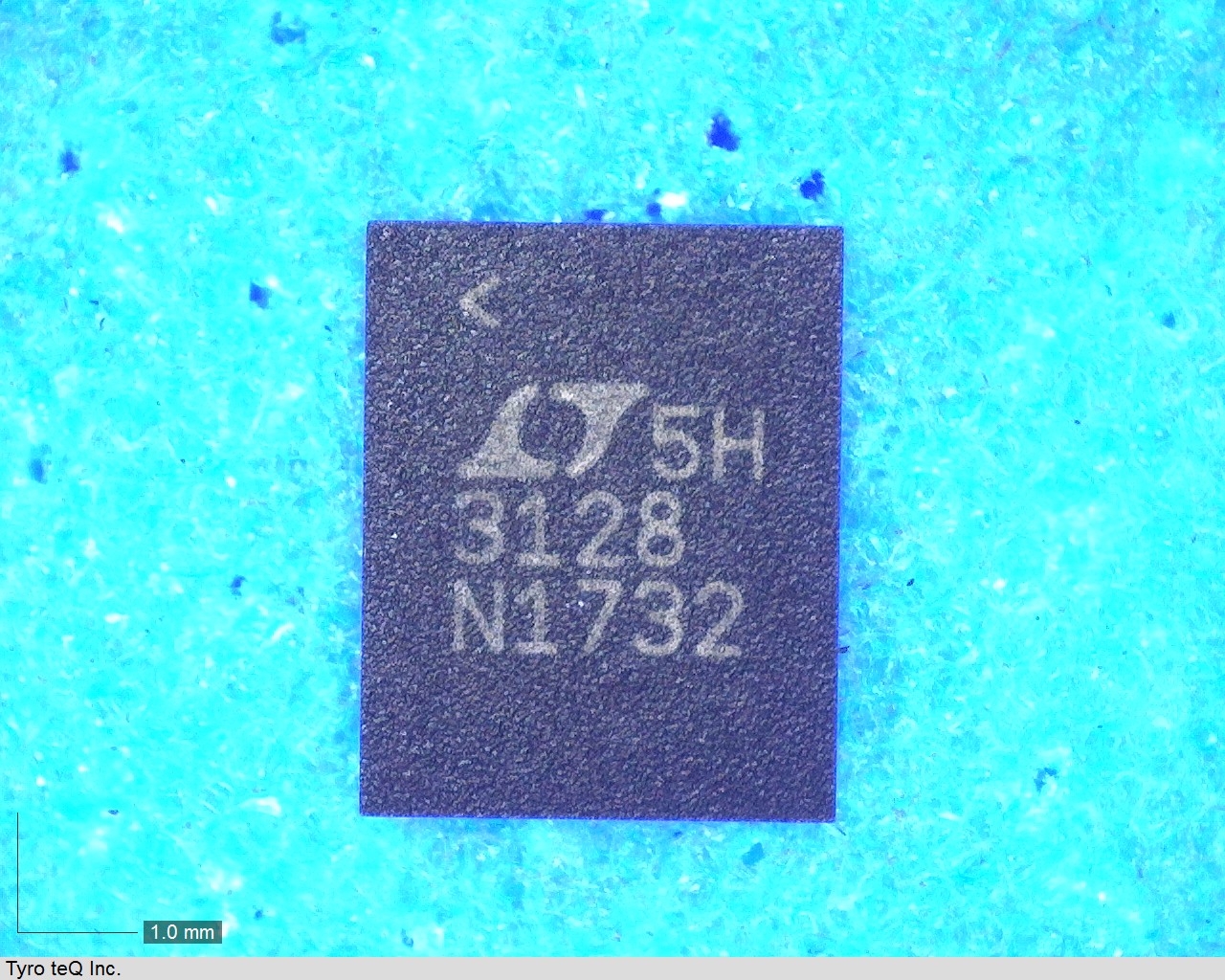

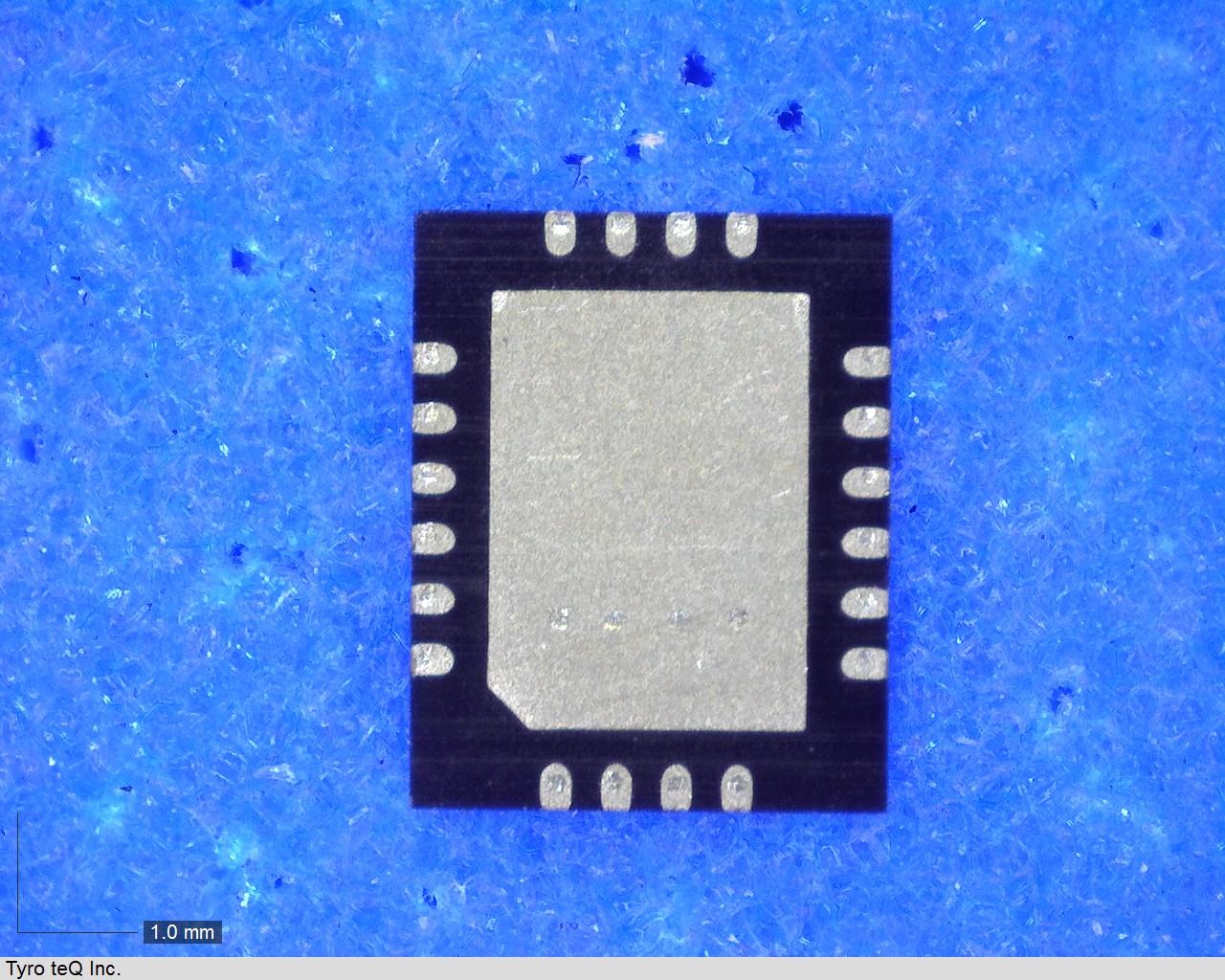

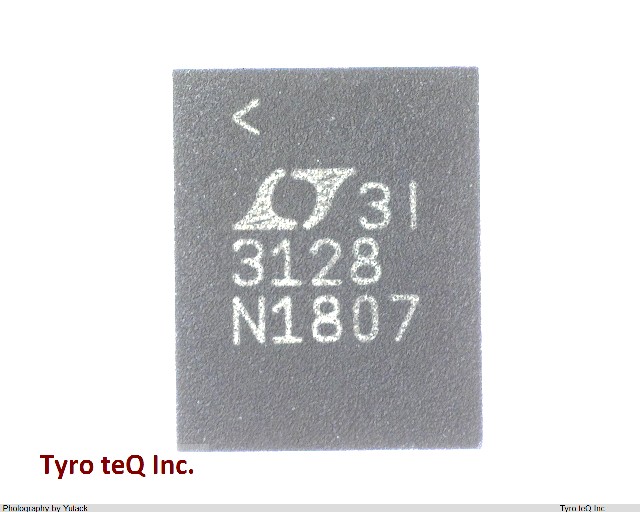

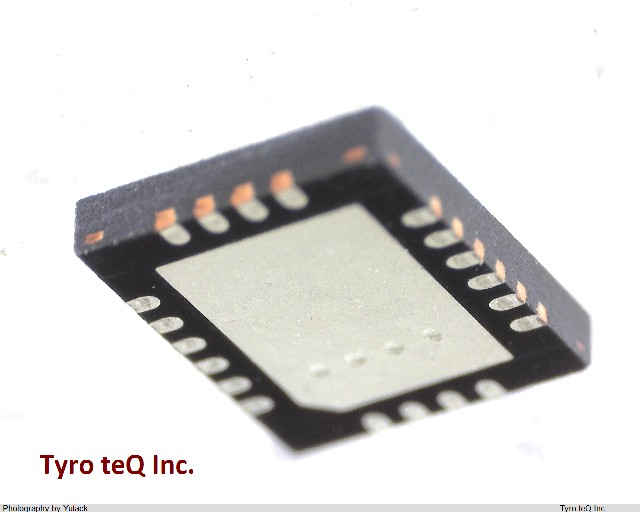

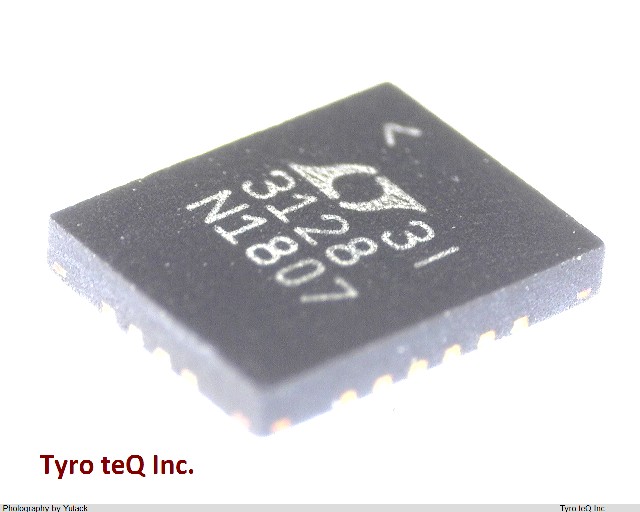

LTC3128EUFD#PBF

Name: LTC3128EUFD#PBF
Brand: LINEAR TECH
SKU: 220217929-0000-0000-0000

LTC3128EUFD#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC3128EUFD#PBF の詳細情報

型番	LTC3128EUFD#PBF
メーカー	LINEAR TECH
Additional Feature	OUTPUT VOLTAGE RANGE FROM 1.8 V TO 5.5 V
Analog IC - Other Type	SWITCHED CAPACITOR CONVERTER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Max (V)	5.5
Input Voltage-Min	1.73 V
Input Voltage-Min (V)	1.73
Input Voltage-Nom	3.3 V
Input Voltage-Nom (V)	3.3
J-STD-609 Code	e3
JESD-30 Code	R-PQCC-N20
JESD-609 Code	e3
Length	5 mm
Length (mm)	5
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	9 A
Output Current-Max (A)	9
Output Voltage-Nom	4.8 V
Output Voltage-Nom (V)	4.8
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	1400 kHz
Switching Frequency-Max (kHz)	1400
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Width	4 mm
Width (mm)	4
