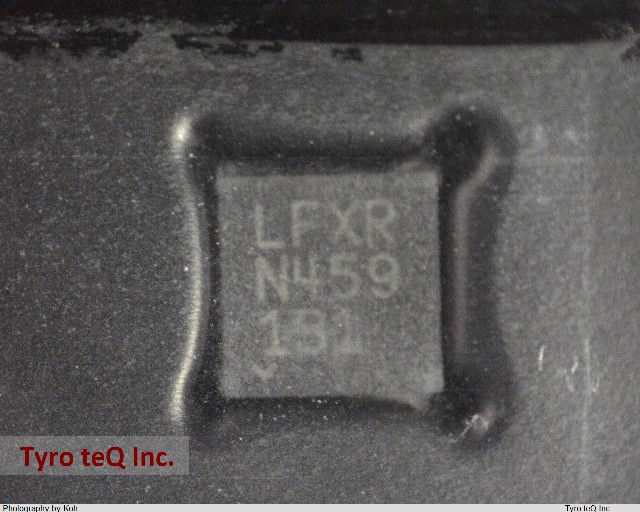

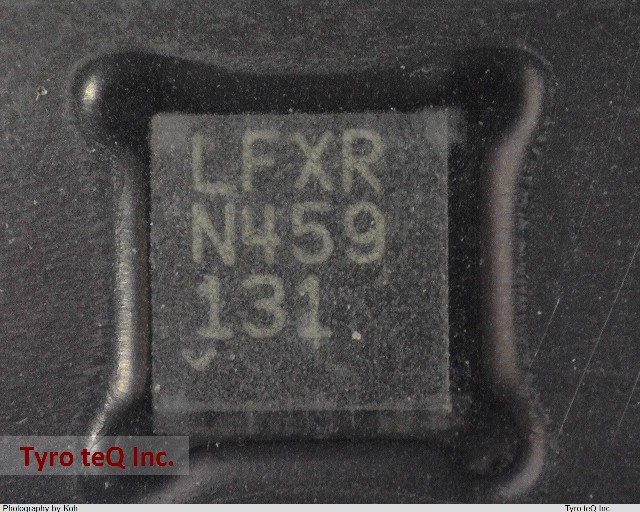

LTC2864IDD-2#PBF
1
-
- 個
２営業日以内に回答いたします
LTC2864IDD-2#PBF の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LTC2864IDD-2#PBF |
|---|---|
| メーカー | LINEAR TECH |
| DLA Qualification | Not Qualified |
| Differential Output | YES |
| Driver Number of Bits | 1 |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER |
| Interface IC Type | LINE TRANSCEIVER |
| Interface Standard | EIA-422; EIA-485 |
| J-STD-609 Code | e3 |
| JESD-30 Code | S-PDSO-N10 |
| Length (mm) | 3 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 10 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Out Swing-Min (V) | 1.5 |
| Output Low Current-Max (mA) | 3 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HVSON |
| Package Equivalence Code | SOLCC10,.12,20 |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 3.3 |
| Receive Delay-Max (ns) | 65 |
| Receiver Number of Bits | 1 |
| Seated Height-Max (mm) | 0.8 |
| Sub Category | Line Driver or Receivers |
| Supply Current-Max (mA) | 8 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | NO LEAD |
| Terminal Pitch (mm) | 0.5 |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transmit Delay-Max (ns) | 1500 |
| Width (mm) | 3 |
| 会社名称 | Linear Technology Corporate |
|---|---|
| 所在地 | 1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA |
| URL | http://www.linear.com/ |
