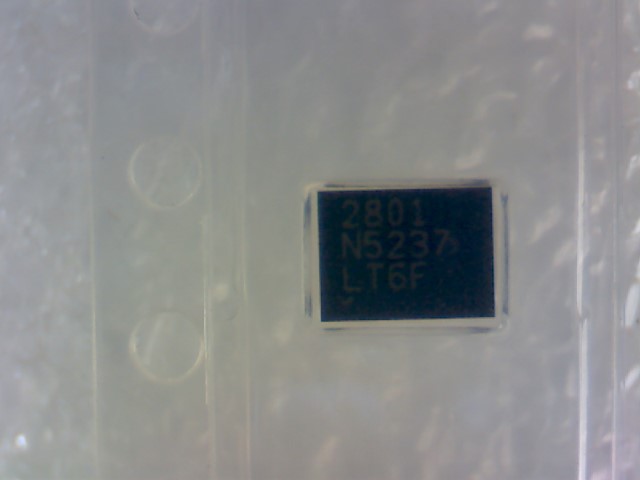

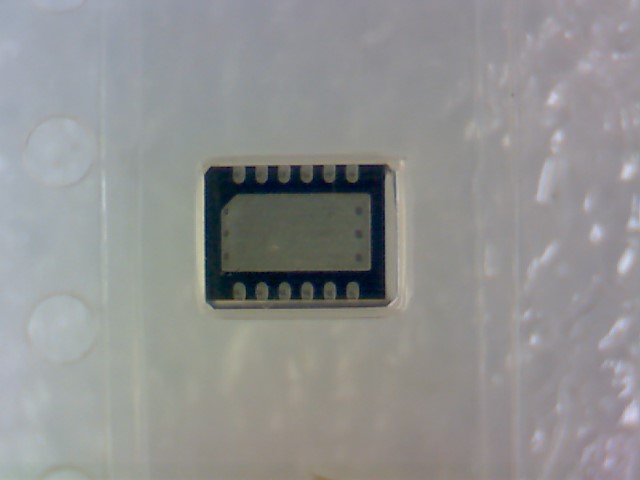

LTC2801CDE

Name: LTC2801CDE
Brand: LINEAR TECH
SKU: 220028174-0000-0000-0000

LTC2801CDE - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC2801CDE の詳細情報

型番	LTC2801CDE
メーカー	LINEAR TECH
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	1
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-F; TIA-232-F
J-STD-609 Code	e0
JESD-30 Code	R-PDSO-N12
JESD-609 Code	e0
Length	4 mm
Length (mm)	4
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	12
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Out Swing-Min	10 V
Out Swing-Min (V)	10
Output Low Current-Max (mA)	1
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC12,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	2/5
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Receive Delay-Max (ns)	400
Receiver Number of Bits	1
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Line Driver or Receivers
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	1.8
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max (ns)	2000
Width (mm)	3
