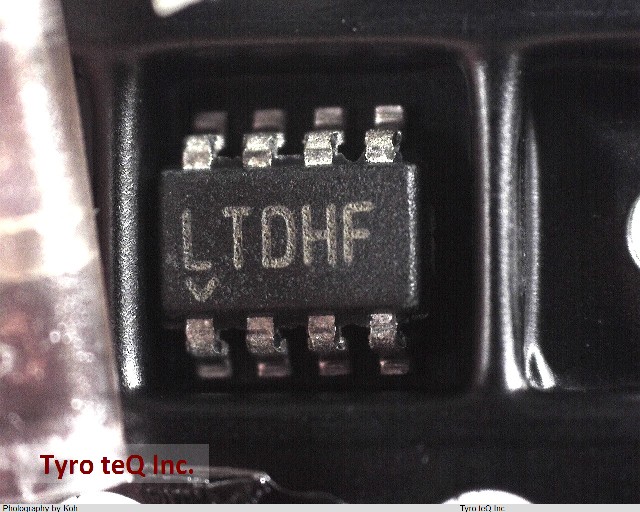

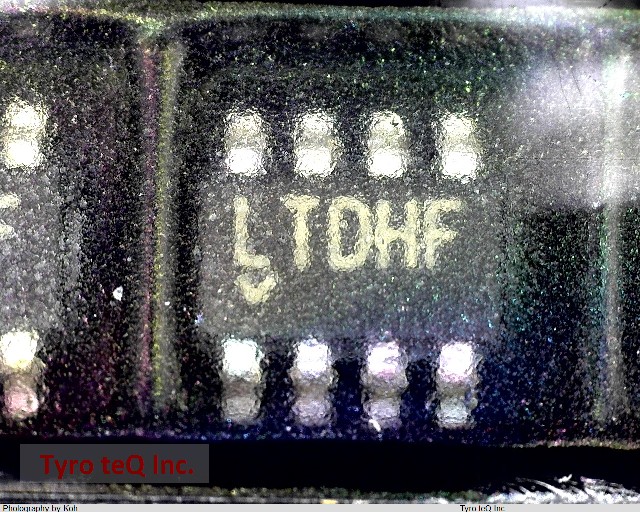

LTC2631CTS8-LM12#PBF

Name: LTC2631CTS8-LM12#PBF
Brand: LINEAR TECH
SKU: 400026700-0000-0000-0000

LTC2631CTS8-LM12#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC2631CTS8-LM12#PBF の詳細情報

型番	LTC2631CTS8-LM12#PBF
メーカー	LINEAR TECH
Analog Output Voltage-Max	2.5 V
Analog Output Voltage-Max (V)	2.5
Analog Output Voltage-Min	0 V
Analog Output Voltage-Min (V)	0
Converter Type	D/A CONVERTER
DLA Qualification	Not Qualified
Input Bit Code	BINARY
Input Format	SERIAL
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	2.9 mm
Length (mm)	2.9
Linearity Error-Max (EL)	0.061 %
Linearity Error-Max (EL) (%)	0.061
Moisture Sensitivity Level	1
Number of Bits	12
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP8,.1
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Seated Height-Max (mm)	1
Settling Time-Nom (tstl)	4.1 us
Settling Time-Nom (tstl) (us)	4.1
Sub Category	Other Converters
Supply Current-Max	0.26 mA
Supply Voltage-Nom	3 V
Supply Voltage-Nom (V)	3
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	1.625 mm
Width (mm)	1.625
