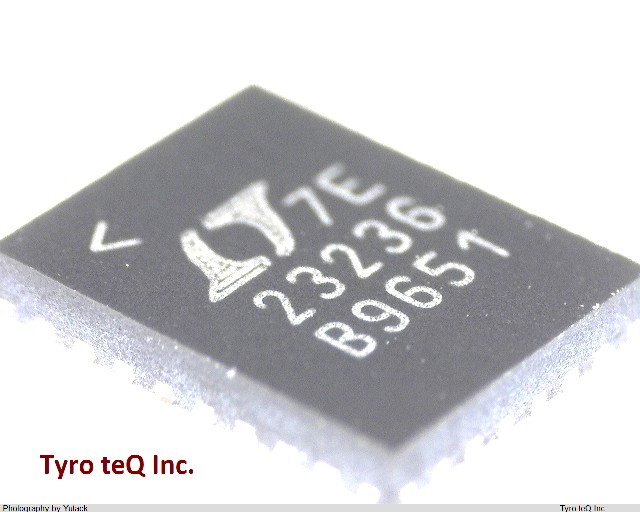

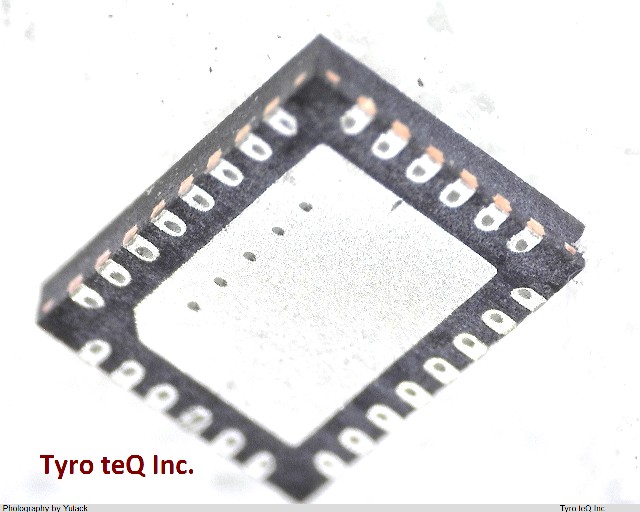

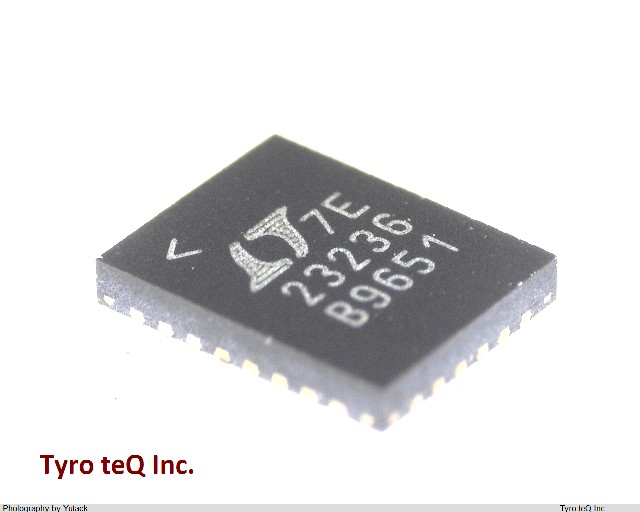

LTC2323IUFD-16#PBF

Name: LTC2323IUFD-16#PBF
Brand: LINEAR TECH
SKU: 220222428-0000-0000-0000

LTC2323IUFD-16#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC2323IUFD-16#PBF の詳細情報

型番	LTC2323IUFD-16#PBF
メーカー	LINEAR TECH
Analog Input Voltage-Max	2.053 V
Analog Input Voltage-Max (V)	2.053
Analog Input Voltage-Min	-2.044 V
Analog Input Voltage-Min (V)	-2.044
Converter Type	ADC, SUCCESSIVE APPROXIMATION
J-STD-609 Code	e3
JESD-30 Code	R-PQCC-N28
JESD-609 Code	e3
Length	5 mm
Length (mm)	5
Linearity Error-Max (EL)	0.0183 %
Linearity Error-Max (EL) (%)	0.0183
Number of Analog In Channels	2
Number of Bits	16
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Sample Rate	5 MHz
Sample Rate (MHz)	5
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Width	4 mm
Width (mm)	4
