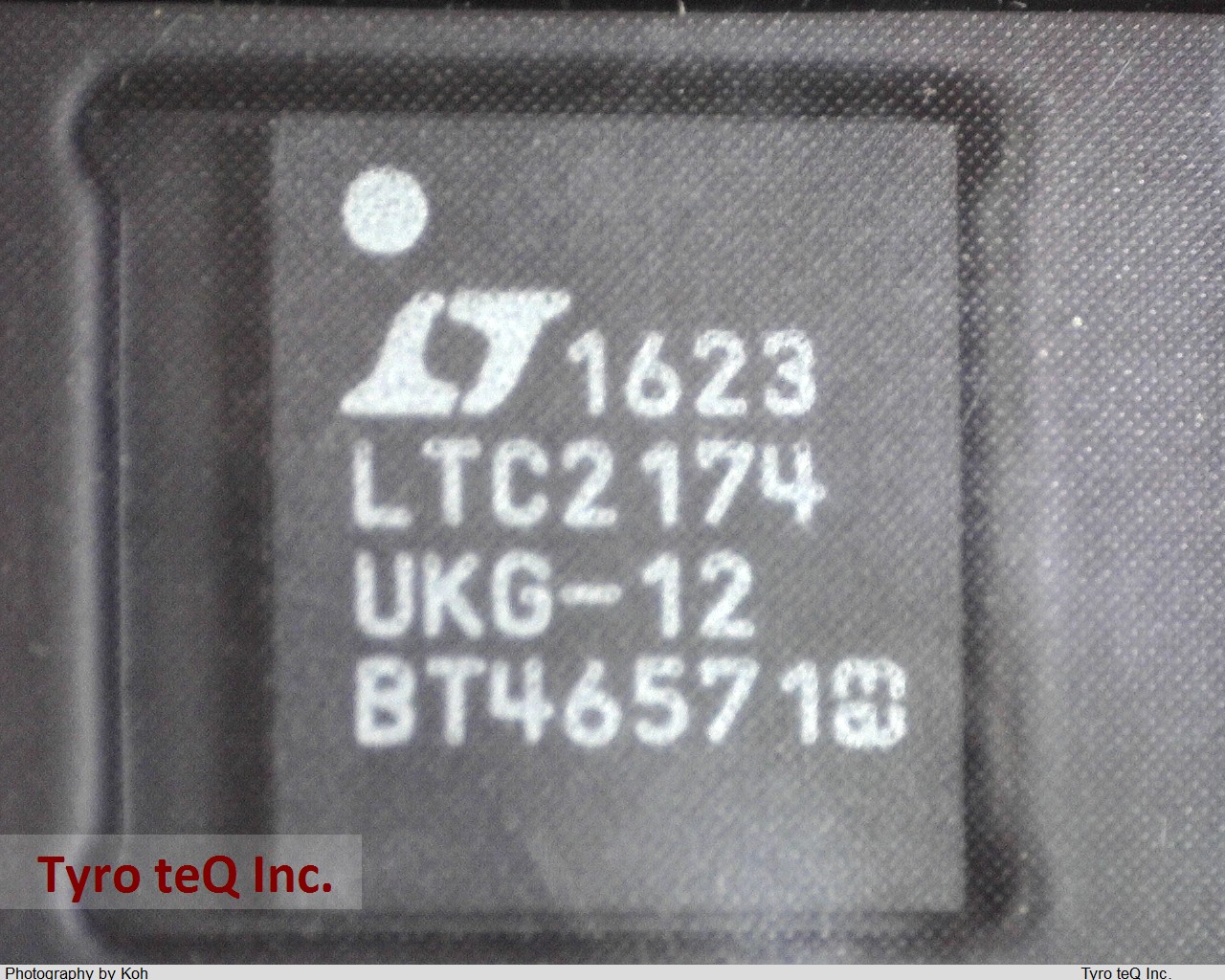

LTC2174CUKG-12#PBF

Name: LTC2174CUKG-12#PBF
Brand: LINEAR TECH
SKU: 220223320-0000-0000-0000

LTC2174CUKG-12#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC2174CUKG-12#PBF の詳細情報

型番	LTC2174CUKG-12#PBF
メーカー	LINEAR TECH
Converter Type	ADC, PROPRIETARY METHOD
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PQCC-N52
JESD-609 Code	e3
Length	8 mm
Length (mm)	8
Linearity Error-Max (EL)	0.0244 %
Linearity Error-Max (EL) (%)	0.0244
Moisture Sensitivity Level	1
Number of Analog In Channels	4
Number of Bits	12
Number of Functions	1
Number of Terminals	52
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Bit Code	OFFSET BINARY, 2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC52,.27X.31,20
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8 V
Qualification Status	Not Qualified
Sample Rate	105 MHz
Sample Rate (MHz)	105
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	1.8 V
Supply Voltage-Nom (V)	1.8
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	7 mm
Width (mm)	7
