LTC1923EGN データシート

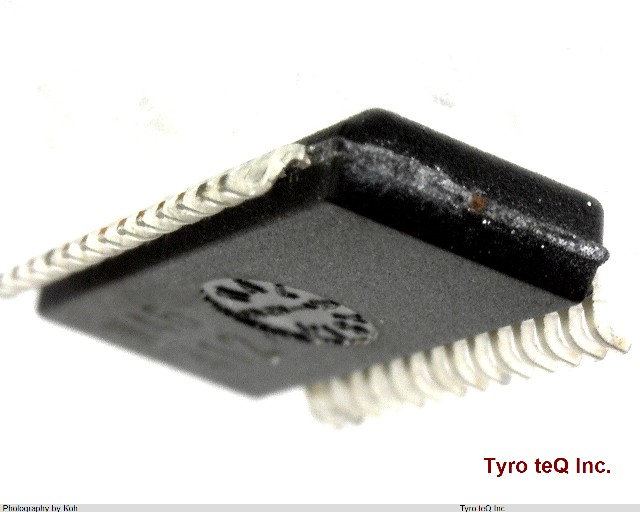

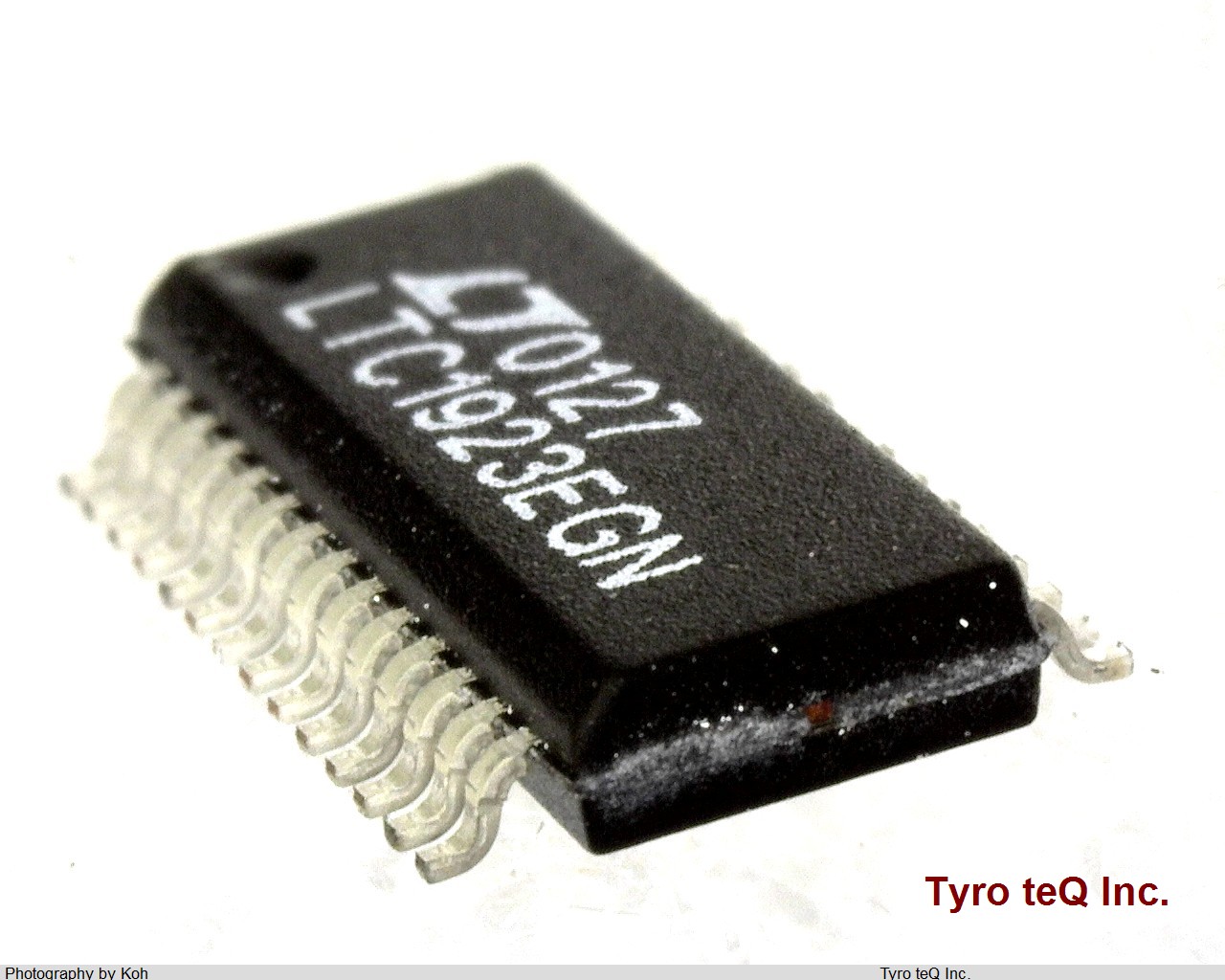

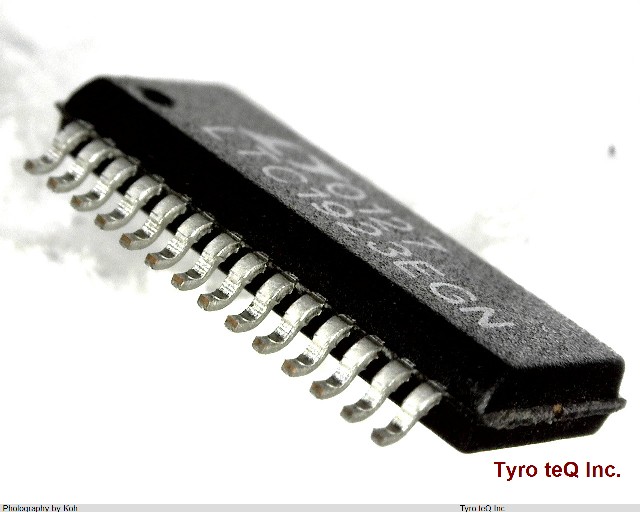

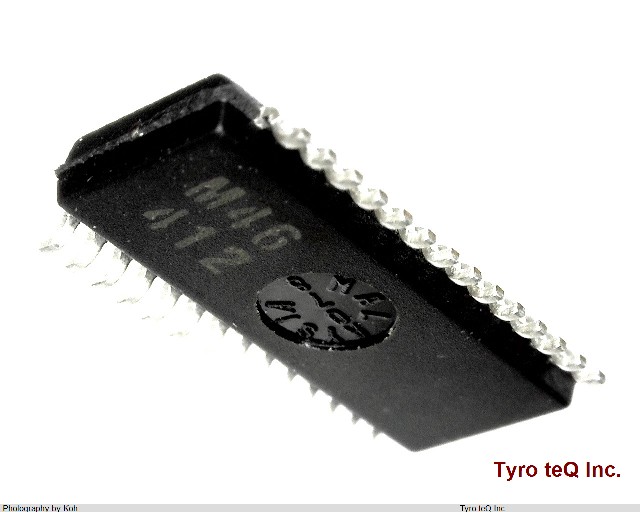

Name: LTC1923EGN
Brand: LINEAR TECH
SKU: 220000055-0000-0000-0000

LTC1923EGN - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1923EGN の詳細情報

型番	LTC1923EGN
メーカー	LINEAR TECH
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	5.5 V
Input Voltage-Max (V)	5.5
Input Voltage-Min	2.7 V
Input Voltage-Min (V)	2.7
Input Voltage-Nom	5 V
Input Voltage-Nom (V)	5
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e0
Length	9.9 mm
Length (mm)	9.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP28,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Other Analog ICs
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switcher Configuration	PUSH-PULL
Switching Frequency-Max	270 kHz
Switching Frequency-Max (kHz)	270
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Pitch (mm)	0.635
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9116 mm
Width (mm)	3.9116
