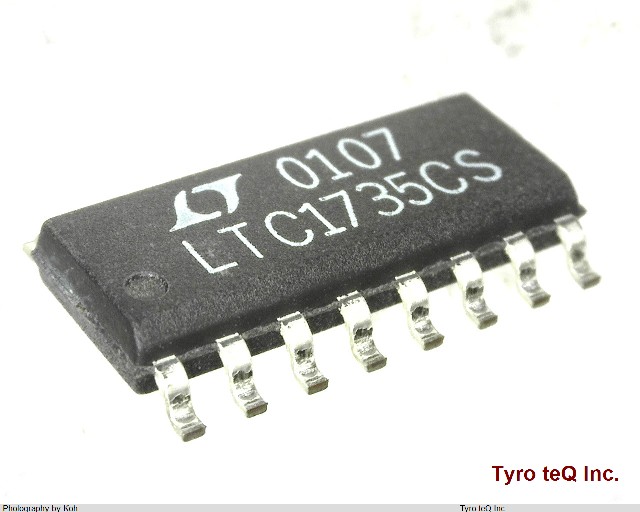

LTC1735CS データシート Lineartech

LTC1735CS - LINEAR TECH の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LTC1735CS の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LTC1735CS
メーカーLINEAR TECH
データシートProduct_list_pdf
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
DLA Qualification Not Qualified
Input Voltage-Max 36 V
Input Voltage-Max (V) 36
Input Voltage-Min 3.5 V
Input Voltage-Min (V) 3.5
Input Voltage-Nom 15 V
Input Voltage-Nom (V) 15
J-STD-609 Code e3
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Length 4.9 mm
Length (mm) 9.9
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Max (Cel) 85
Operating Temperature-Min 0 Cel
Operating Temperature-Min (Cel) 0
Output Current-Max 3 A
Output Current-Max (A) 3
Output Voltage-Max 6 V
Output Voltage-Max (V) 6
Output Voltage-Min 0.8 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Seated Height-Max (mm) 1.75
Sub Category Switching Regulator or Controllers
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 335 kHz
Switching Frequency-Max (kHz) 335
Technology CMOS
Temperature Grade OTHER
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Pitch (mm) 1.27
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Width 3.899 mm
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/
