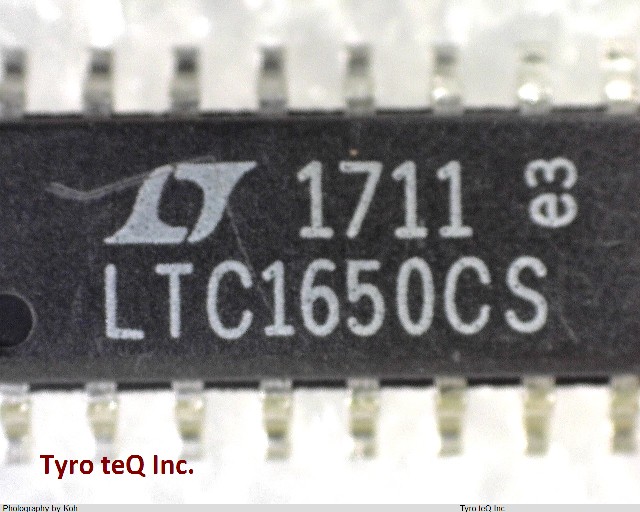

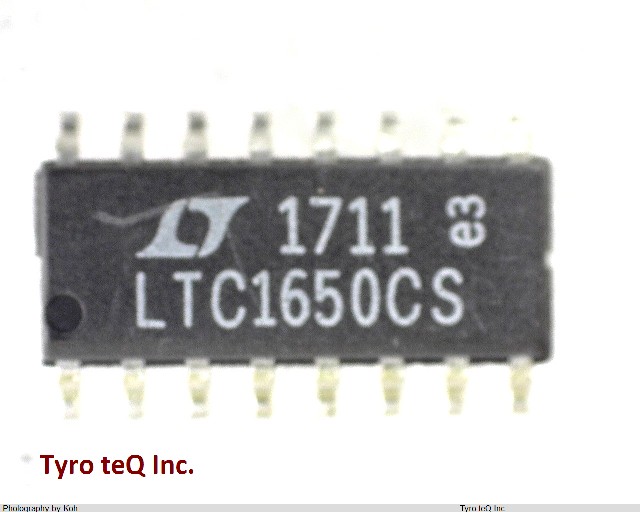

LTC1650CS データシート

Name: LTC1650CS
Brand: LINEAR TECH
SKU: 220007535-0000-0000-0000

LTC1650CS - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1650CS の詳細情報

型番	LTC1650CS
メーカー	LINEAR TECH
データシート
Analog Output Voltage-Max	4.096 V
Analog Output Voltage-Max (V)	4.096
Analog Output Voltage-Min	-4.096 V
Analog Output Voltage-Min (V)	-4.096
Converter Type	D/A CONVERTER
DLA Qualification	Not Qualified
Input Bit Code	BINARY
Input Format	SERIAL
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Length (mm)	9.9
Linearity Error-Max (EL)	0.0244 %
Linearity Error-Max (EL) (%)	0.0244
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Bits	16
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Settling Time-Nom (tstl)	4 us
Settling Time-Nom (tstl) (us)	4
Sub Category	Other Converters
Supply Current-Max	7.75 mA
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Width	3.9 mm
