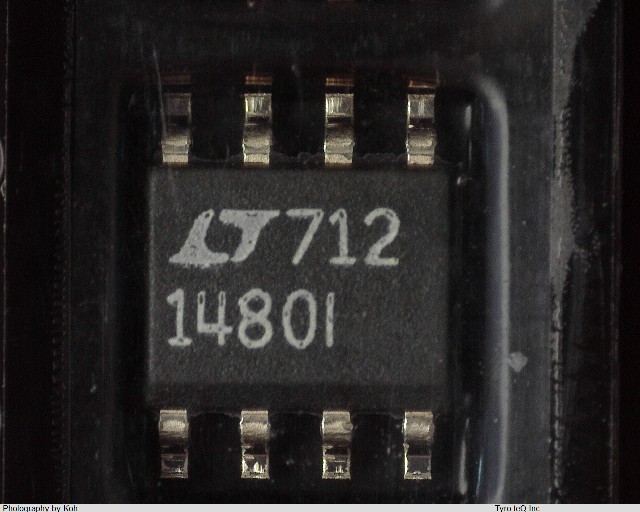

LTC1480IS8 データシート

Name: LTC1480IS8
Brand: LINEAR TECH
SKU: 220007457-0000-0000-0000

LTC1480IS8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1480IS8 の詳細情報

型番	LTC1480IS8
メーカー	LINEAR TECH
データシート
Additional Feature	COMMON I/O; TRISTATABLE RECEIVER; 1 RECEIVER ACTIVE UNDER SHUTDOWN
DLA Qualification	Not Qualified
Differential Output	YES
Driver Number of Bits	1
High Level Input Current-Max (A)	2.0E-6
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422; EIA-485
J-STD-609 Code	e0
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9025 mm
Length (mm)	4.9025
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Out Swing-Min (V)	1.5
Output Characteristics	3-STATE
Output Low Current-Max (mA)	4
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	235
Power Supplies (V)	3.3
Qualification Status	Not Qualified
Receive Delay-Max (ns)	200
Receiver Number of Bits	1
Seated Height-Max (mm)	1.752
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	0.6
Supply Voltage-Max (V)	3.6
Supply Voltage-Min (V)	3
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transmit Delay-Max (ns)	80
Width (mm)	3.899
