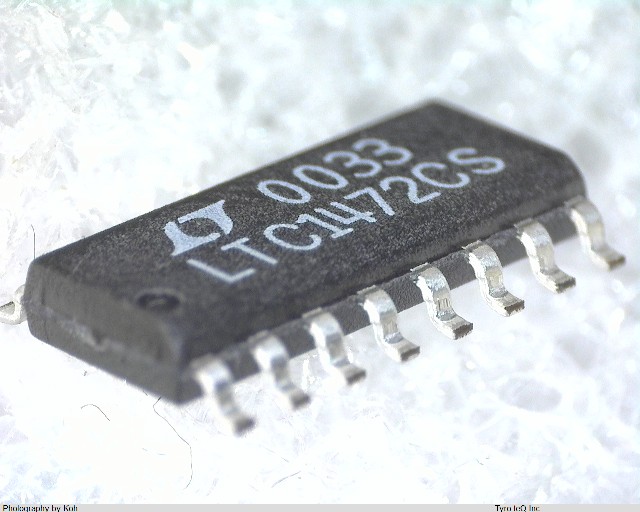

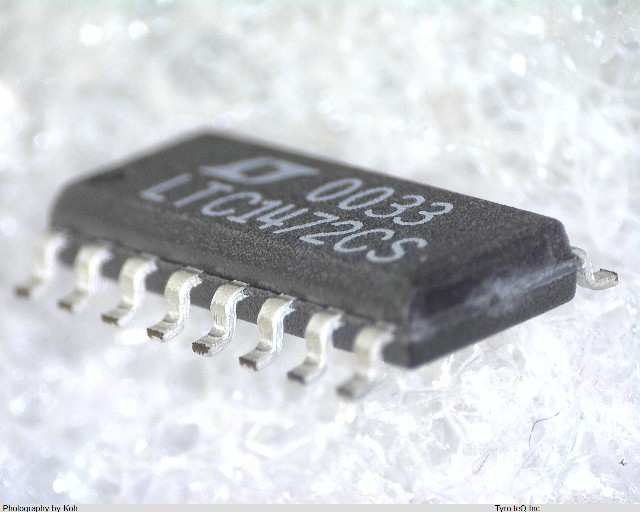

LTC1472CS データシート

Name: LTC1472CS
Brand: LINEAR TECH
SKU: 220007448-0000-0000-0000

LTC1472CS - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1472CS の詳細情報

型番	LTC1472CS
メーカー	LINEAR TECH
データシート
Additional Feature	ADDITIONAL 3 TO 5.5 VCC SUPPLY REQUIRED
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Length (mm)	9.9
Moisture Sensitivity Level	1
Number of Channels	2
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Power Management Circuits
Supply Voltage-Max (V)	12.6
Supply Voltage-Max (Vsup)	12.6 V
Supply Voltage-Min (V)	0
Supply Voltage-Min (Vsup)	0 V
Supply Voltage-Nom (V)	12
Supply Voltage-Nom (Vsup)	12 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
Width (mm)	3.9
