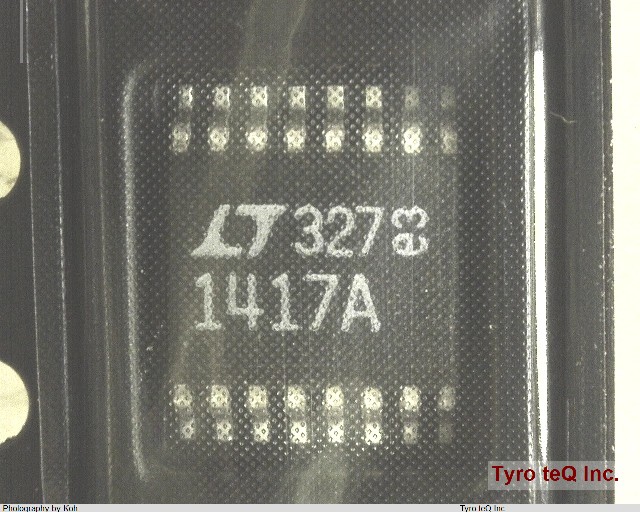

LTC1417ACGN#PBF

Name: LTC1417ACGN#PBF
Brand: LINEAR TECH
SKU: 220195372-0000-0000-0000

LTC1417ACGN#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1417ACGN#PBF の詳細情報

型番	LTC1417ACGN#PBF
メーカー	LINEAR TECH
Analog Input Voltage-Max	2.048 V
Analog Input Voltage-Max (V)	2.048
Analog Input Voltage-Min	-2.048 V
Analog Input Voltage-Min (V)	-2.048
Conversion Time-Max	2.25 us
Conversion Time-Max (us)	2.25
Converter Type	ADC, SUCCESSIVE APPROXIMATION
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	4.9 mm
Length (mm)	4.9
Linearity Error-Max (EL)	0.0076 %
Linearity Error-Max (EL) (%)	0.0076
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Analog In Channels	1
Number of Bits	14
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Bit Code	BINARY, 2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/+-5 V
Qualification Status	Not Qualified
Sample Rate	0.4 MHz
Sample Rate (MHz)	0.4
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
