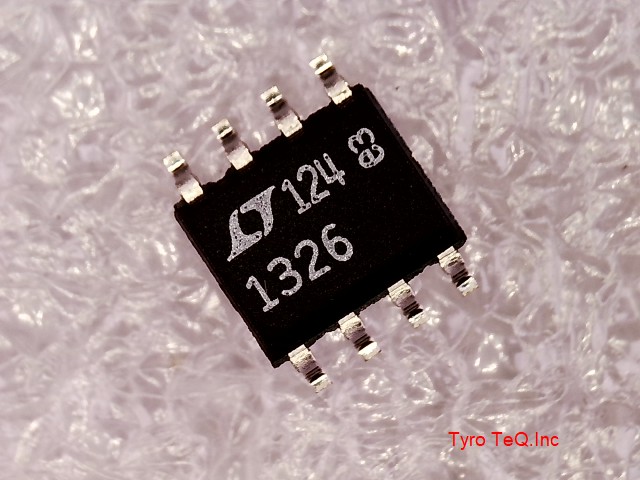

LTC1326CS8#PBF

Name: LTC1326CS8#PBF
Brand: LINEAR TECH
SKU: 220219021-0000-0000-0000

LTC1326CS8#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1326CS8#PBF の詳細情報

型番	LTC1326CS8#PBF
メーカー	LINEAR TECH
Additional Feature	RESET THRESHOLD VOLTAGE IS 4.725; MANUAL PUSH-BUTTON RESET INPUT
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9025 mm
Length (mm)	4.9025
Moisture Sensitivity Level	1
Number of Channels	3
Number of Functions	3
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.752 mm
Seated Height-Max (mm)	1.752
Sub Category	Power Management Circuits
Supply Current-Max (Isup)	0.04 mA
Supply Voltage-Max (V)	7
Supply Voltage-Max (Vsup)	7 V
Supply Voltage-Min (V)	1
Supply Voltage-Min (Vsup)	1 V
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Threshold Voltage-Nom	+1.0,3.118,4.725V V
Threshold Voltage-Nom (V)	+4.725V
Time@Peak Reflow Temperature-Max (s)	30
Width	3.899 mm
Width (mm)	3.899
