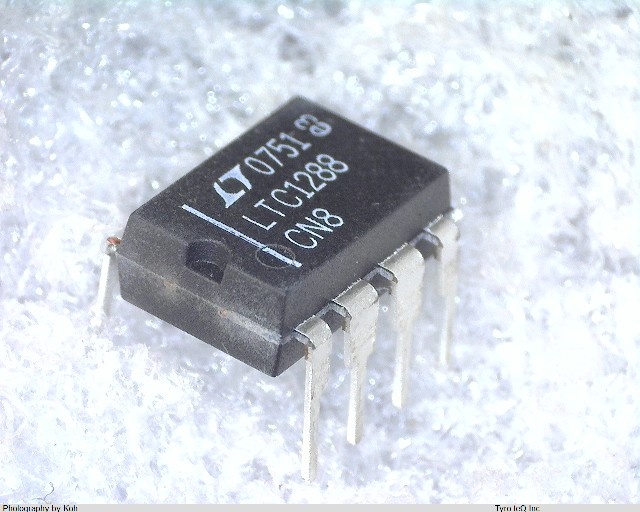

LTC1288CN8 データシート

Name: LTC1288CN8
Brand: LINEAR TECH
SKU: 220004103-0000-0000-0000

LTC1288CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1288CN8 の詳細情報

型番	LTC1288CN8
メーカー	LINEAR TECH
データシート
Analog Input Voltage-Max	3.05 V
Analog Input Voltage-Max (V)	3.05
Analog Input Voltage-Min	-0.05 V
Analog Input Voltage-Min (V)	-0.05
Conversion Time-Max	100 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	10.16 mm
Linearity Error-Max (EL)	0.0488 %
Linearity Error-Max (EL) (%)	0.0488
Moisture Sensitivity Level	1
Number of Analog In Channels	2
Number of Bits	12
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Bit Code	BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Sample Rate	0.0066 MHz
Sample Rate (MHz)	0.0066
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	3.809 mm
Seated Height-Max (mm)	3.937
Sub Category	Analog to Digital Converters
Supply Current-Max	0.39 mA
Supply Current-Max (mA)	0.39
Supply Voltage-Nom	3 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
