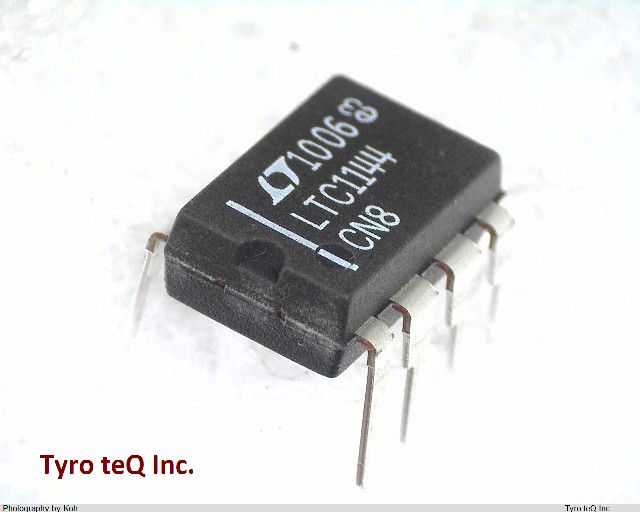

LTC1144CN8 データシート

Name: LTC1144CN8
Brand: LINEAR TECH
SKU: 220007293-0000-0000-0000

LTC1144CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1144CN8 の詳細情報

型番	LTC1144CN8
メーカー	LINEAR TECH
データシート
Additional Feature	LG-MAX; ST-HEIGHT CALCULATED
Analog IC - Other Type	SWITCHED CAPACITOR CONVERTER
DLA Qualification	Not Qualified
Input Voltage-Max	18 V
Input Voltage-Max (V)	18
Input Voltage-Min	2 V
Input Voltage-Min (V)	2
Input Voltage-Nom	15 V
Input Voltage-Nom (V)	15
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	10.16 mm
Length (mm)	10.16
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	0.02 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	3.937 mm
Seated Height-Max (mm)	3.937
Sub Category	Other Analog ICs
Supply Current-Max (Isup)	1.3 mA
Supply Current-Max (mA)	1.3
Surface Mount	NO
Switcher Configuration	DOUBLER INVERTER
Switching Frequency-Max	10 kHz
Switching Frequency-Max (kHz)	10
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
Width (mm)	7.62
