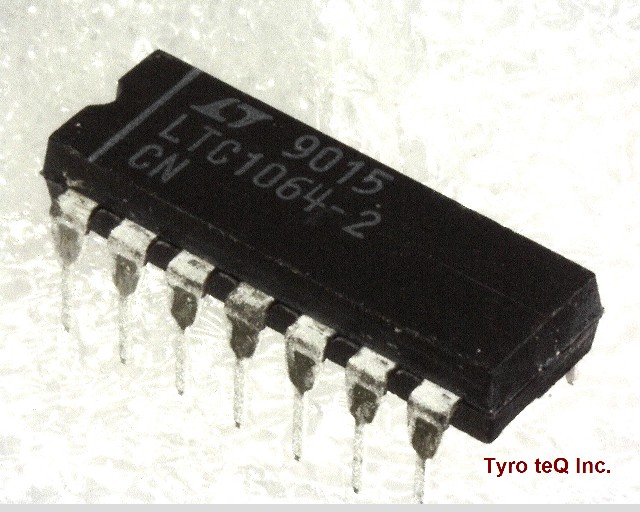

LTC10642CN

Name: LTC10642CN
Brand: LINEAR TECH
SKU: 400062796-0000-0000-0000

LTC10642CN - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC10642CN の詳細情報

型番	LTC10642CN
メーカー	LINEAR TECH
Active Filter Type	SWITCHED CAPACITOR FILTER
Additional Feature	IT CAN ALSO OPERATE FROM A +/-7.5V NOMINAL SUPPLY
Center or Cutoff Freq Rng-Max	140 kHz
Center or Cutoff Freq Rng-Max (kHz)	140
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-8 V
Neg Supply Voltage-Min (Vsup)	-2.37 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Max (V)	-8
Negative Supply Voltage-Min (V)	-2.37
Negative Supply Voltage-Nom (V)	-5
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Order	8TH
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Poles and Zeros	8 AND 0
Power Supplies	+-7.5 V
Qualification Status	Not Qualified
Response	LOWPASS
Seated Height-Max	3.937 mm
Seated Height-Max (mm)	3.937
Sub Category	Active Filters
Supply Current-Max (Isup)	32 mA
Supply Voltage-Max (V)	8
Supply Voltage-Max (Vsup)	8 V
Supply Voltage-Min (V)	2.37
Supply Voltage-Min (Vsup)	2.37 V
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Transfer Characteristics	BUTTERWORTH
Width	7.62 mm
