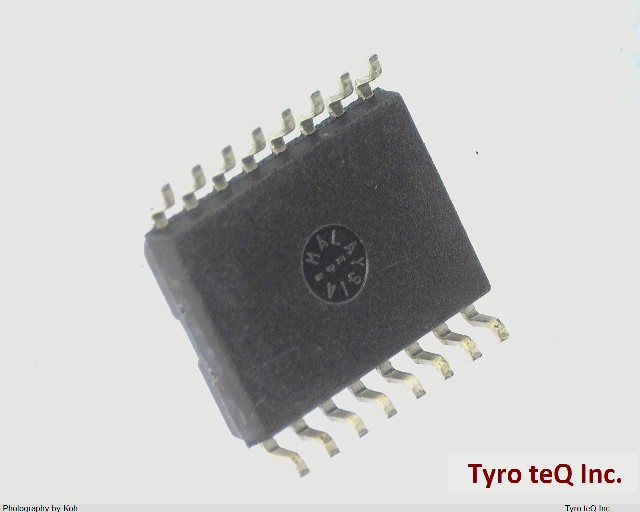

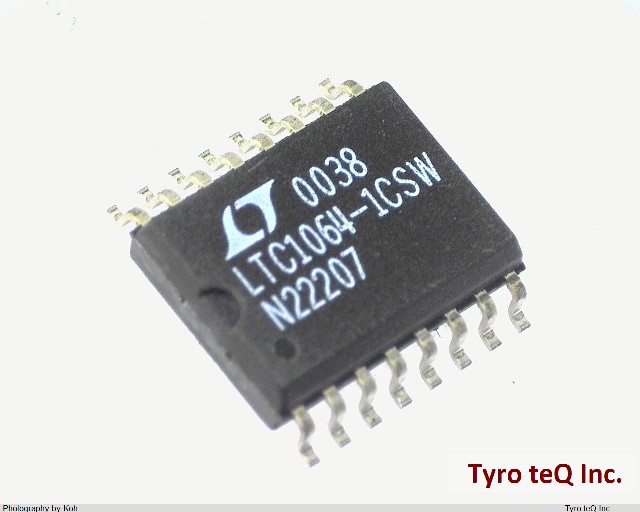

LTC1064-1CSW

Name: LTC1064-1CSW
Brand: LINEAR TECH
SKU: 220007274-0000-0000-0000

LTC1064-1CSW - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1064-1CSW の詳細情報

型番	LTC1064-1CSW
メーカー	LINEAR TECH
Active Filter Type	SWITCHED CAPACITOR FILTER
Center or Cutoff Freq Rng-Max	50 kHz
Center or Cutoff Freq Rng-Max (kHz)	50
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.2995 mm
Length (mm)	10.2995
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-8 V
Neg Supply Voltage-Min (Vsup)	-2.37 V
Neg Supply Voltage-Nom (Vsup)	-7.5 V
Negative Supply Voltage-Max (V)	-8
Negative Supply Voltage-Min (V)	-2.37
Negative Supply Voltage-Nom (V)	-7.5
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Order	8TH
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Poles and Zeros	8 AND 0
Power Supplies	+-7.5 V
Qualification Status	Not Qualified
Response	LOWPASS
Seated Height-Max	2.642 mm
Seated Height-Max (mm)	2.642
Sub Category	Active Filters
Supply Current-Max (Isup)	32 mA
Supply Voltage-Max (V)	8
Supply Voltage-Max (Vsup)	8 V
Supply Voltage-Min (Vsup)	2.37 V
Supply Voltage-Nom (Vsup)	7.5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transfer Characteristics	ELLIPTIC/BESSEL
Width	7.5 mm
