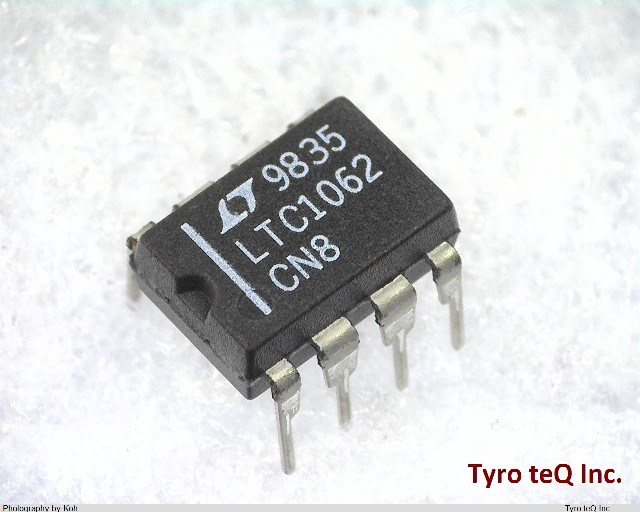

LTC1062CN8 データシート

Name: LTC1062CN8
Brand: LINEAR TECH
SKU: 220004073-0000-0000-0000

LTC1062CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTC1062CN8 の詳細情報

型番	LTC1062CN8
メーカー	LINEAR TECH
データシート
Active Filter Type	SWITCHED CAPACITOR FILTER
Additional Feature	ZERO DC ERROR
Center or Cutoff Freq Rng-Max	20 kHz
Center or Cutoff Freq Rng-Min	0 kHz
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-9 V
Neg Supply Voltage-Min (Vsup)	-2.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Max (V)	-9
Negative Supply Voltage-Min (V)	-2.5
Negative Supply Voltage-Nom (V)	-5
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Order	5TH
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Poles and Zeros	5 AND 0
Power Supplies	+-5 V
Qualification Status	Not Qualified
Response	LOWPASS
Seated Height-Max	3.937 mm
Seated Height-Max (mm)	3.937
Sub Category	Active Filters
Supply Current-Max (Isup)	10 mA
Supply Voltage-Max (Vsup)	8 V
Supply Voltage-Min (Vsup)	2.375 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transfer Characteristics	BUTTERWORTH
Width	7.62 mm
