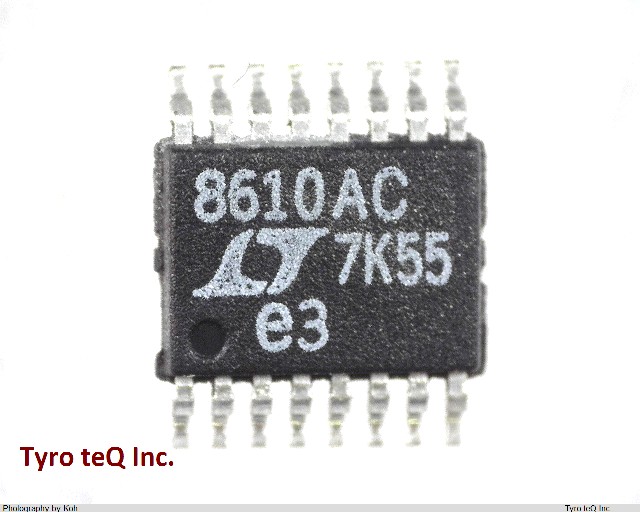

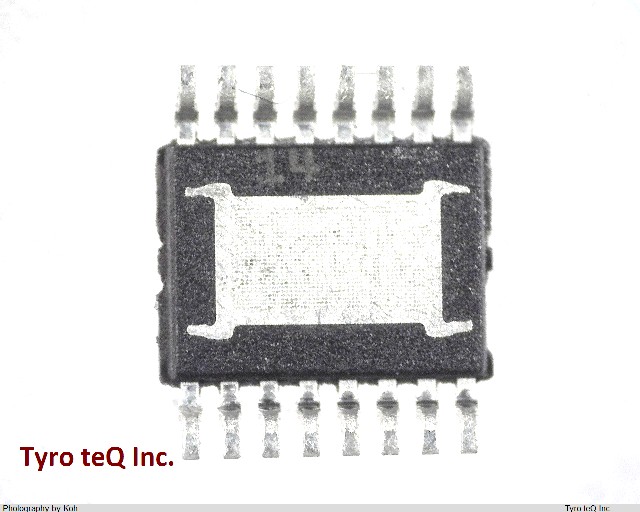

LT8610ACEMSE#PBF

Name: LT8610ACEMSE#PBF
Brand: LINEAR TECH
SKU: 220223244-0000-0000-0000

LT8610ACEMSE#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT8610ACEMSE#PBF の詳細情報

型番	LT8610ACEMSE#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max (V)	42
Input Voltage-Min	2.6 V
Input Voltage-Min (V)	3
Input Voltage-Nom	6 V
Input Voltage-Nom (V)	6
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	4.039 mm
Length (mm)	4.039
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	5.4 A
Output Current-Max (A)	5.4
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2200 kHz
Switching Frequency-Max (kHz)	2200
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Width	3 mm
Width (mm)	3
