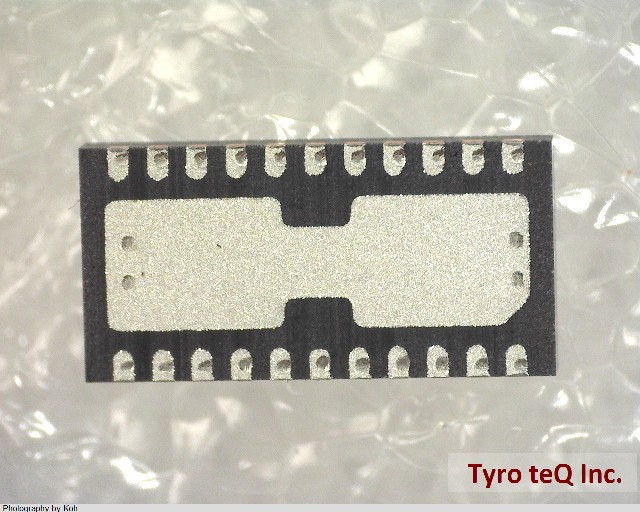

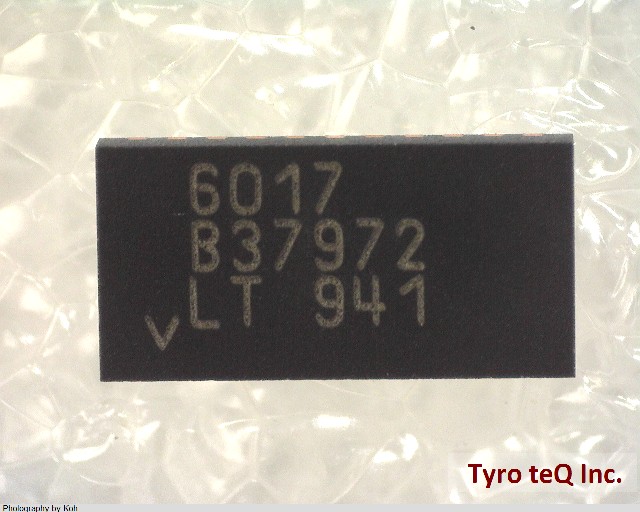

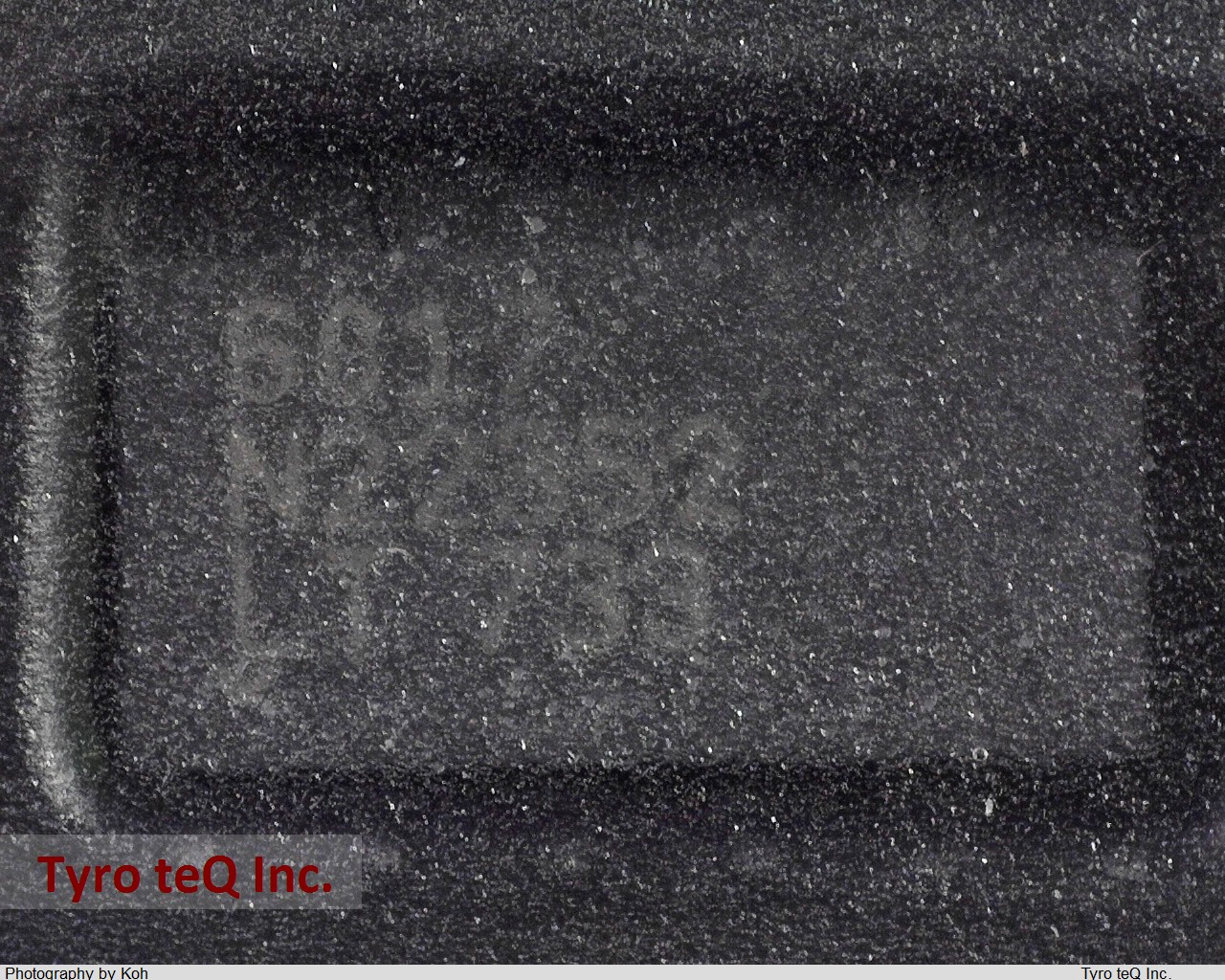

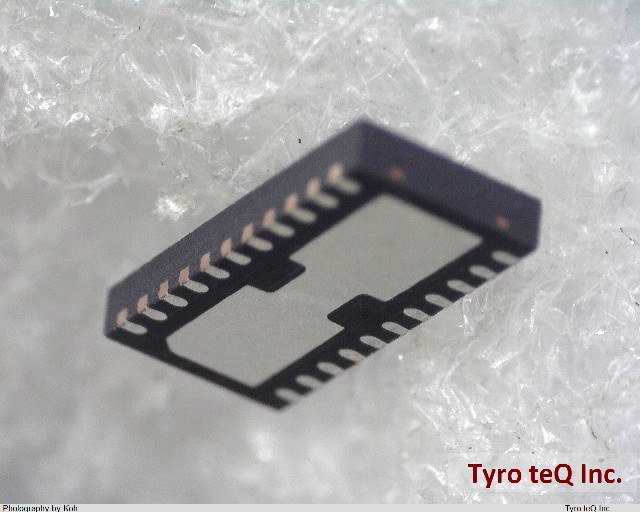

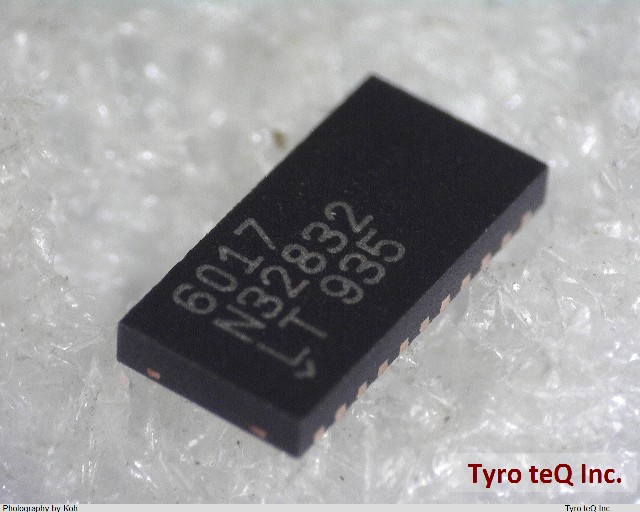

LT6017IDJC#PBF

Name: LT6017IDJC#PBF
Brand: LINEAR TECH
SKU: 220223372-0000-0000-0000

LT6017IDJC#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT6017IDJC#PBF の詳細情報

型番	LT6017IDJC#PBF
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.015 uA
Average Bias Current-Max (IIB) (uA)	0.015
Bias Current-Max (IIB) @25C	0.005 uA
Common-mode Reject Ratio-Nom	126 dB
Common-mode Reject Ratio-Nom (dB)	126
Frequency Compensation	YES
Input Offset Voltage-Max	250 uV
Input Offset Voltage-Max (uV)	250
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-N22
JESD-609 Code	e3
Length	6 mm
Length (mm)	6
Low-Bias	NO
Low-Offset	YES
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-25 V
Neg Supply Voltage Limit-Max (V)	-25
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Number of Functions	1
Number of Terminals	22
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC22,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-1.5/+-25/3/50 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Slew Rate-Nom	0.8 V/us
Sub Category	Operational Amplifier
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
