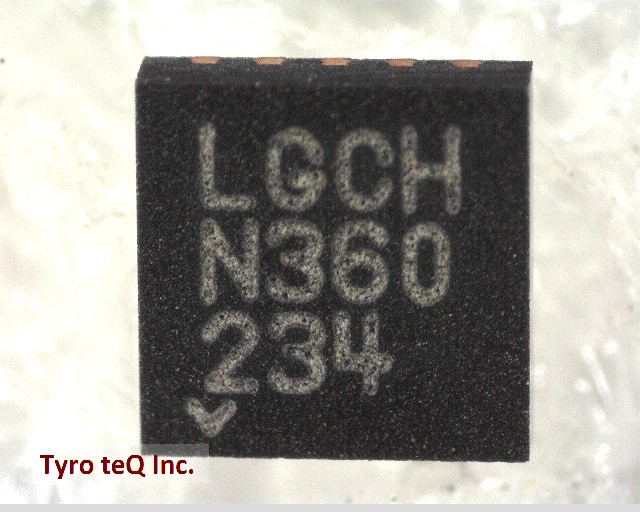

LT3973EDD#PBF
1
-
- 個
２営業日以内に回答いたします
LT3973EDD#PBF の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LT3973EDD#PBF |
|---|---|
| メーカー | LINEAR TECH |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Mode | CURRENT-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Max | 42 V |
| Input Voltage-Max (V) | 42 |
| Input Voltage-Min | 4.2 V |
| Input Voltage-Min (V) | 4.2 |
| Input Voltage-Nom | 12 V |
| Input Voltage-Nom (V) | 12 |
| J-STD-609 Code | e3 |
| JESD-30 Code | S-PDSO-N10 |
| JESD-609 Code | e3 |
| Length | 3 mm |
| Length (mm) | 3 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 10 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min | 0 Cel |
| Operating Temperature-Min (Cel) | 0 |
| Output Current-Max | 1.98 A |
| Output Current-Max (A) | 1.98 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HVSON |
| Package Equivalence Code | SOLCC10,.12,20 |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 0.8 mm |
| Seated Height-Max (mm) | 0.8 |
| Sub Category | Switching Regulator or Controllers |
| Surface Mount | YES |
| Switcher Configuration | BUCK |
| Switching Frequency-Max | 2580 kHz |
| Switching Frequency-Max (kHz) | 2580 |
| Technology | BIPOLAR |
| Temperature Grade | OTHER |
| Terminal Finish | MATTE TIN |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5 mm |
| Terminal Pitch (mm) | 0.5 |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 3 mm |
| Width (mm) | 3 |
| 会社名称 | Linear Technology Corporate |
|---|---|
| 所在地 | 1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA |
| URL | http://www.linear.com/ |
