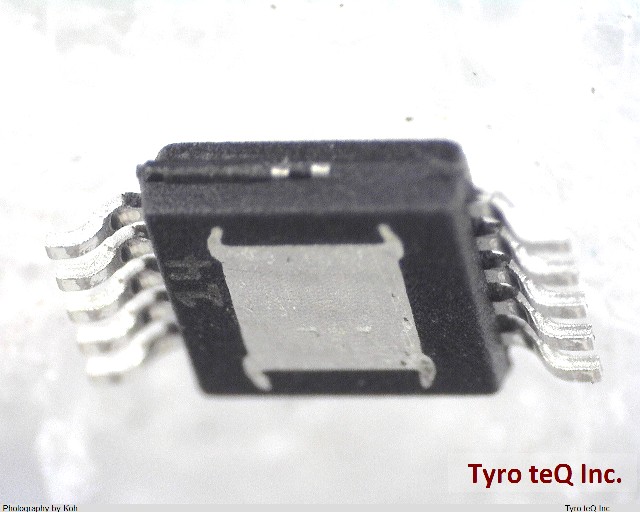

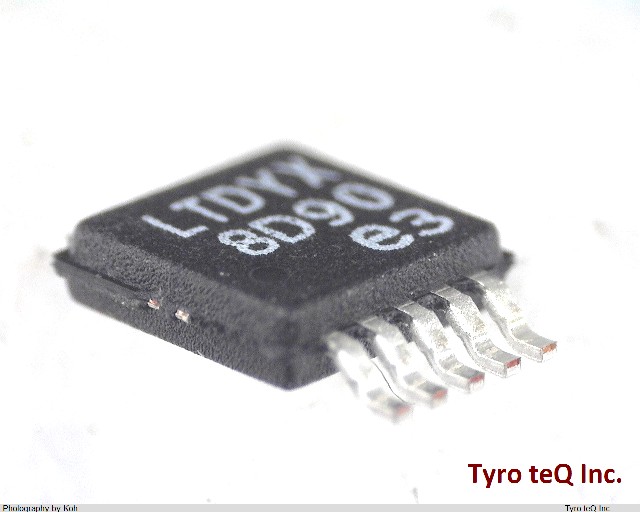

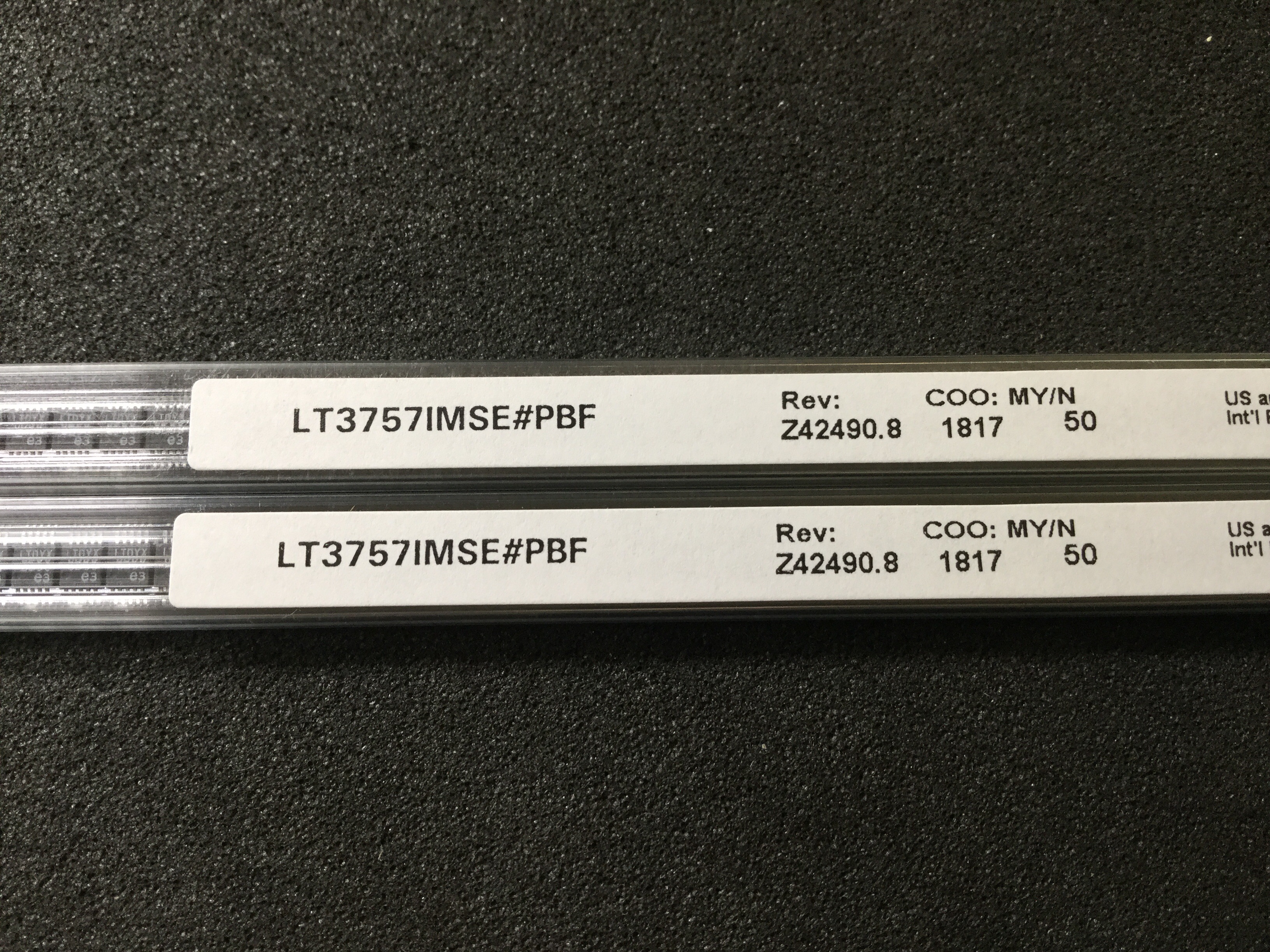

LT3757IMSE#PBF

Name: LT3757IMSE#PBF
Brand: LINEAR TECH
SKU: 220223610-0000-0000-0000

LT3757IMSE#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3757IMSE#PBF の詳細情報

型番	LT3757IMSE#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	40 V
Input Voltage-Max (V)	40
Input Voltage-Min	2.9 V
Input Voltage-Min (V)	2.9
Input Voltage-Nom	24 V
Input Voltage-Nom (V)	24
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G10
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	0.02 A
Output Voltage-Nom	7.2 V
Output Voltage-Nom (V)	7.2
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP10,.19,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	1000 kHz
Switching Frequency-Max (kHz)	1000
Technology	BIPOLAR
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
