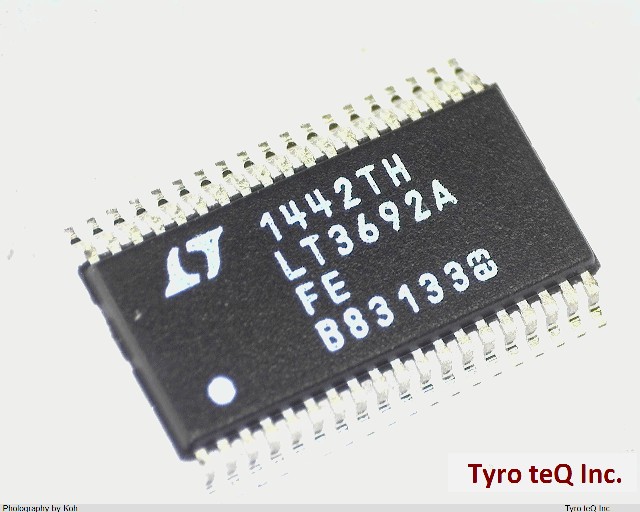

LT3692AEFE#PBF

Name: LT3692AEFE#PBF
Brand: LINEAR TECH
SKU: 220224056-0000-0000-0000

LT3692AEFE#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3692AEFE#PBF の詳細情報

型番	LT3692AEFE#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	35 V
Input Voltage-Max (V)	35
Input Voltage-Min	3 V
Input Voltage-Min (V)	3
Input Voltage-Nom	15 V
Input Voltage-Nom (V)	15
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G38
JESD-609 Code	e3
Length	9.7 mm
Length (mm)	9.7
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	38
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	5.8 A
Output Current-Max (A)	5.8
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP38,.25,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Seated Height-Max (mm)	1.2
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	PHASE-SHIFT
Switching Frequency-Max	3000 kHz
Switching Frequency-Max (kHz)	3000
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm
Width (mm)	4.4
