LT3571EUD#PBF Lineartech

LT3571EUD#PBF - LINEAR TECH の商品詳細ページです。

1

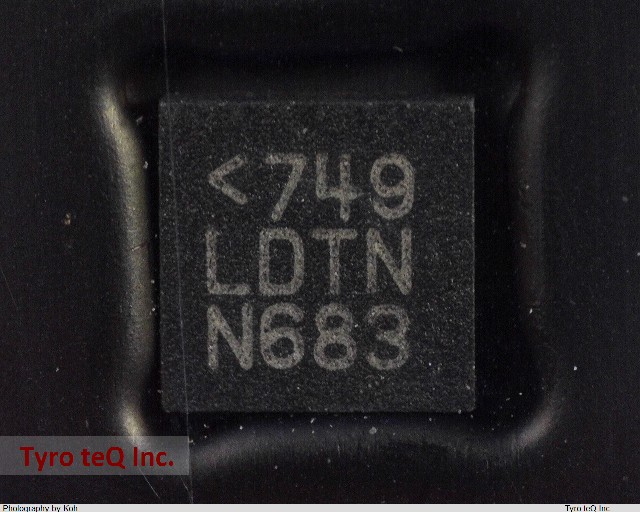

LT3571EUD#PBF
  • LT3571EUD#PBF
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT3571EUD#PBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT3571EUD#PBF
メーカーLINEAR TECH
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
DLA Qualification Not Qualified
Input Voltage-Max 20 V
Input Voltage-Max (V) 20
Input Voltage-Min 2.7 V
Input Voltage-Min (V) 2.7
Input Voltage-Nom 3 V
Input Voltage-Nom (V) 3
J-STD-609 Code e3
JESD-30 Code S-PQCC-N16
JESD-609 Code e3
Length 3 mm
Length (mm) 3
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 125 Cel
Operating Temperature-Max (Cel) 125
Operating Temperature-Min 0 Cel
Operating Temperature-Min (Cel) 0
Output Current-Max 0.57 A
Output Current-Max (A) 0.57
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC16,.12SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 0.8 mm
Seated Height-Max (mm) 0.8
Sub Category Switching Regulator or Controllers
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 2300 kHz
Switching Frequency-Max (kHz) 2300
Technology BIPOLAR
Temperature Grade OTHER
Terminal Finish MATTE TIN
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Pitch (mm) 0.5
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 3 mm
Width (mm) 3
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/

LT3571EUD#PBFのレビュー

LT3571EUD#PBF のご注文について
