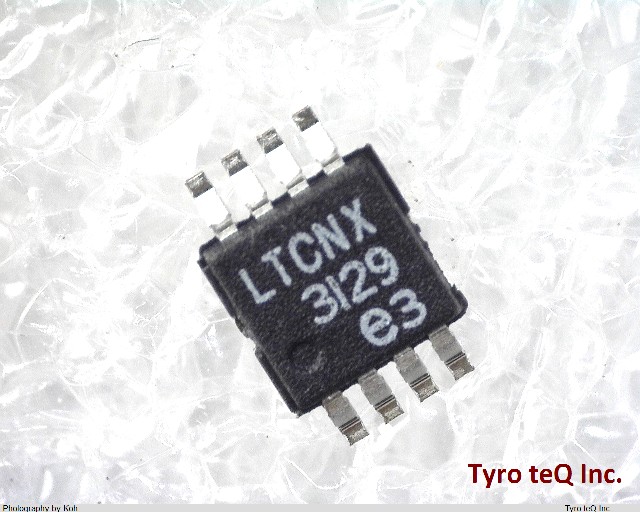

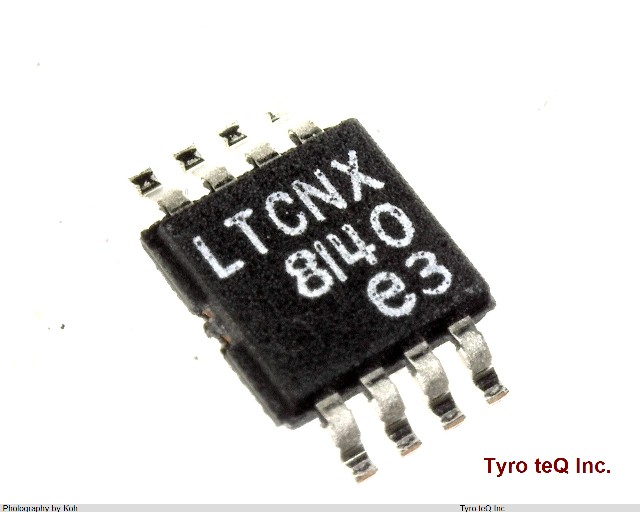

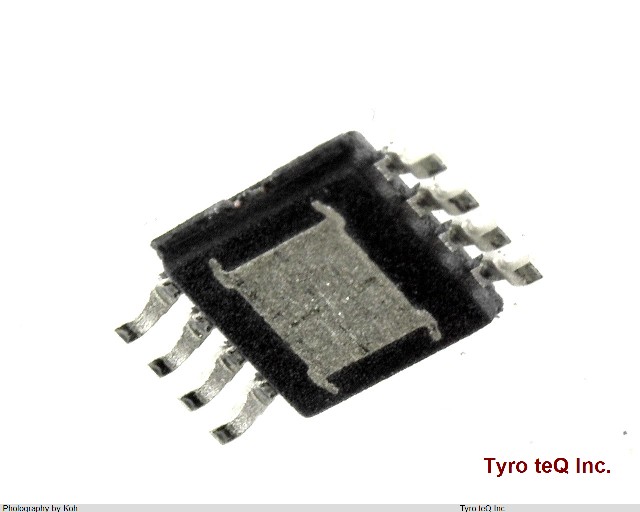

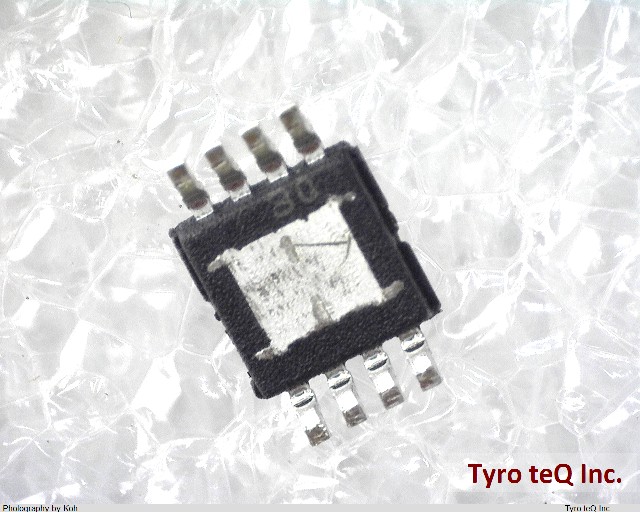

LT3505EMS8E#PBF

Name: LT3505EMS8E#PBF
Brand: LINEAR TECH
SKU: 220195472-0000-0000-0000

LT3505EMS8E#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3505EMS8E#PBF の詳細情報

型番	LT3505EMS8E#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	36 V
Input Voltage-Max (V)	36
Input Voltage-Min	3.6 V
Input Voltage-Min (V)	3.6
Input Voltage-Nom	12 V
Input Voltage-Nom (V)	12
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	2.2 A
Output Current-Max (A)	2.2
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	3300 kHz
Switching Frequency-Max (kHz)	3300
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
