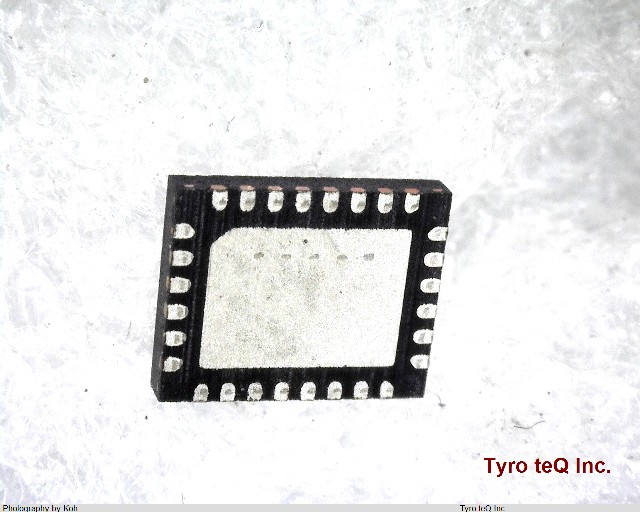

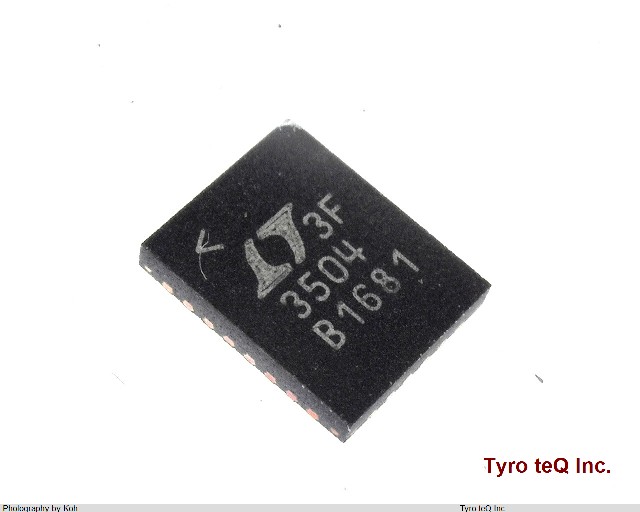

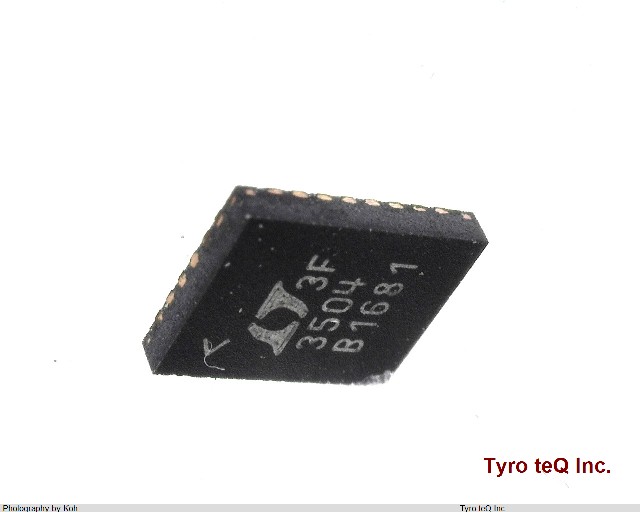

LT3504IUFD#PBF

Name: LT3504IUFD#PBF
Brand: LINEAR TECH
SKU: 220223221-0000-0000-0000

LT3504IUFD#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3504IUFD#PBF の詳細情報

型番	LT3504IUFD#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Input Voltage-Max	40 V
Input Voltage-Max (V)	40
Input Voltage-Min	3.2 V
Input Voltage-Min (V)	3.2
Input Voltage-Nom	12 V
Input Voltage-Nom (V)	12
J-STD-609 Code	e3
JESD-30 Code	R-PQCC-N28
JESD-609 Code	e3
Length	5 mm
Length (mm)	5
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	2.1 A
Output Current-Max (A)	2.1
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC28,.16X.2,20
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2400 kHz
Switching Frequency-Max (kHz)	2400
Technology	BIPOLAR
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	4 mm
Width (mm)	4
