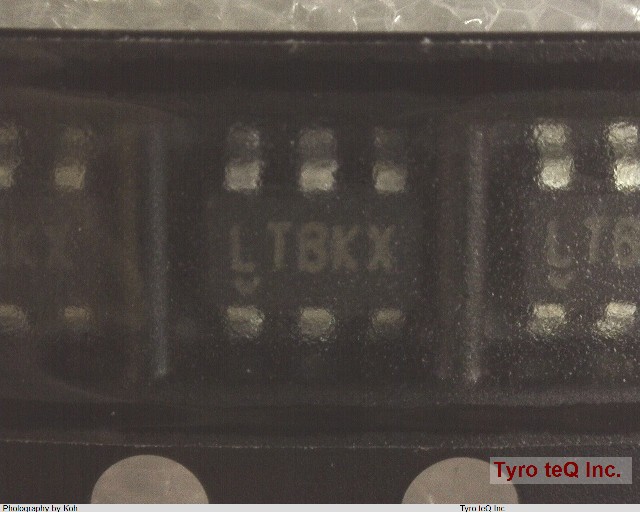

LT3483ES6 データシート

Name: LT3483ES6
Brand: LINEAR TECH
SKU: 220026880-0000-0000-0000

LT3483ES6 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3483ES6 の詳細情報

型番	LT3483ES6
メーカー	LINEAR TECH
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Technique	CONSTANT OFF TIME
DLA Qualification	Not Qualified
Input Voltage-Max	16 V
Input Voltage-Max (V)	16
Input Voltage-Min	2.5 V
Input Voltage-Min (V)	2.5
Input Voltage-Nom	3.6 V
Input Voltage-Nom (V)	3.6
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e0
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	0.23 A
Output Current-Max (A)	0.23
Output Voltage-Nom	-38 V
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSOP6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Seated Height-Max (mm)	1
Sub Category	Other Analog ICs
Surface Mount	YES
Switcher Configuration	BOOST
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	1.625 mm
Width (mm)	1.625
