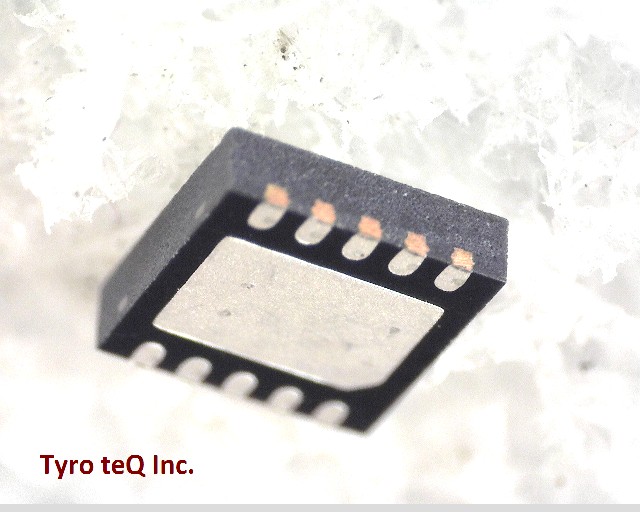

LT3471EDD#PBF

Name: LT3471EDD#PBF
Brand: LINEAR TECH
SKU: 220201679-0000-0000-0000

LT3471EDD#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3471EDD#PBF の詳細情報

型番	LT3471EDD#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	16 V
Input Voltage-Max (V)	16
Input Voltage-Min	2.4 V
Input Voltage-Min (V)	2.4
Input Voltage-Nom	3 V
Input Voltage-Nom (V)	3
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-N10
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	2.6 A
Output Current-Max (A)	2.6
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC10,.12,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	1400 kHz
Switching Frequency-Max (kHz)	1400
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
