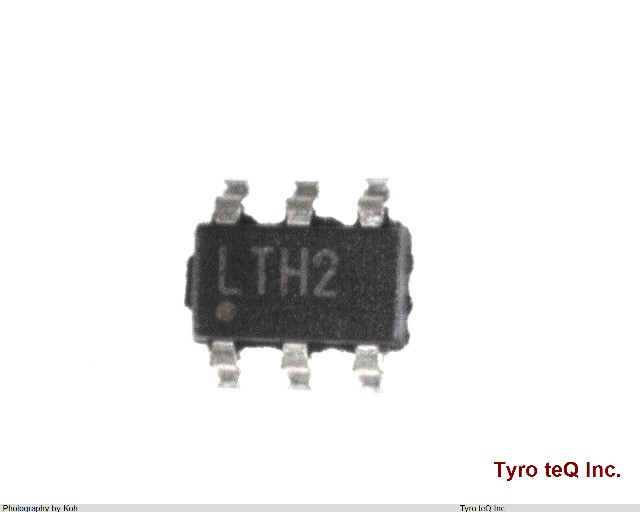

LT3465ES6

Name: LT3465ES6
Brand: LINEAR TECH
SKU: 400056698-0000-0000-0000

LT3465ES6 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3465ES6 の詳細情報

型番	LT3465ES6
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	16 V
Input Voltage-Max (V)	16
Input Voltage-Min	2.7 V
Input Voltage-Min (V)	2.7
Input Voltage-Nom	3 V
Input Voltage-Nom (V)	3
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e0
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	0.34 A
Output Current-Max (A)	0.34
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Seated Height-Max (mm)	1
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	1600 kHz
Switching Frequency-Max (kHz)	1600
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	1.625 mm
Width (mm)	1.625
