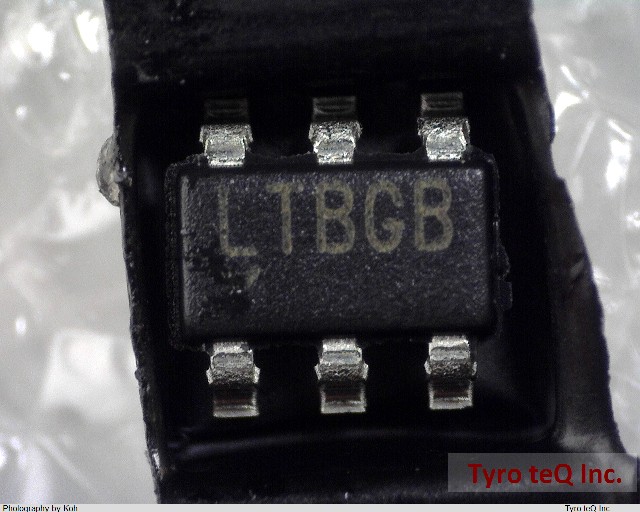

LT3462AES6#PBF

Name: LT3462AES6#PBF
Brand: LINEAR TECH
SKU: 220223904-0000-0000-0000

LT3462AES6#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3462AES6#PBF の詳細情報

型番	LT3462AES6#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	16 V
Input Voltage-Max (V)	16
Input Voltage-Min	2.5 V
Input Voltage-Min (V)	2.5
Input Voltage-Nom	3 V
Input Voltage-Nom (V)	3
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	0.42 A
Output Voltage-Max (V)	-38
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSOP6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Seated Height-Max (mm)	1
Sub Category	Switching Regulator or Controllers
Supply Current-Max (mA)	3.6
Surface Mount	YES
Switcher Configuration	SINGLE
Switching Frequency-Max	3500 kHz
Switching Frequency-Max (kHz)	3500
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	1.625 mm
Width (mm)	1.625
