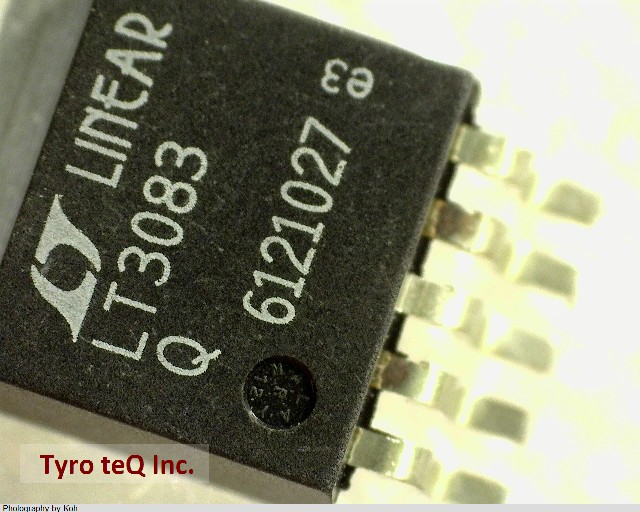

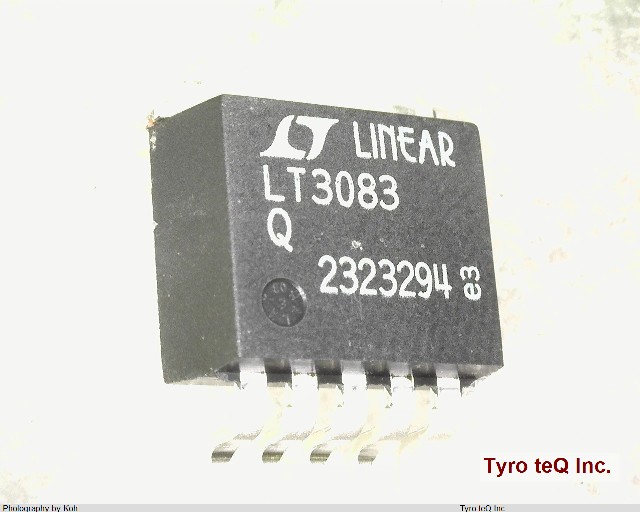

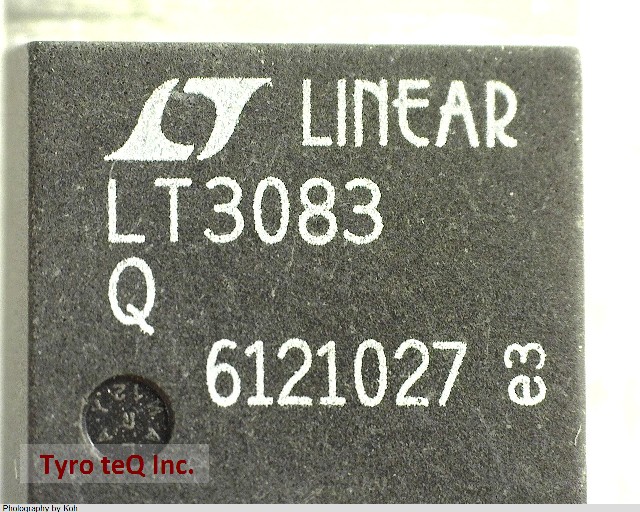

LT3083EQ#PBF

Name: LT3083EQ#PBF
Brand: LINEAR TECH
SKU: 220223593-0000-0000-0000

LT3083EQ#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3083EQ#PBF の詳細情報

型番	LT3083EQ#PBF
メーカー	LINEAR TECH
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.51 V
Dropout Voltage1-Nom	0.31 V
JESD-30 Code	R-PSSO-G5
JESD-609 Code	e3
Length	10.2235 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	3 A
Output Voltage1-Max	23 V
Output Voltage1-Min	0 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SMSIP5H,.6,67TB
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	4.877 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	GULL WING
Terminal Pitch	1.702 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Width	8.89 mm
