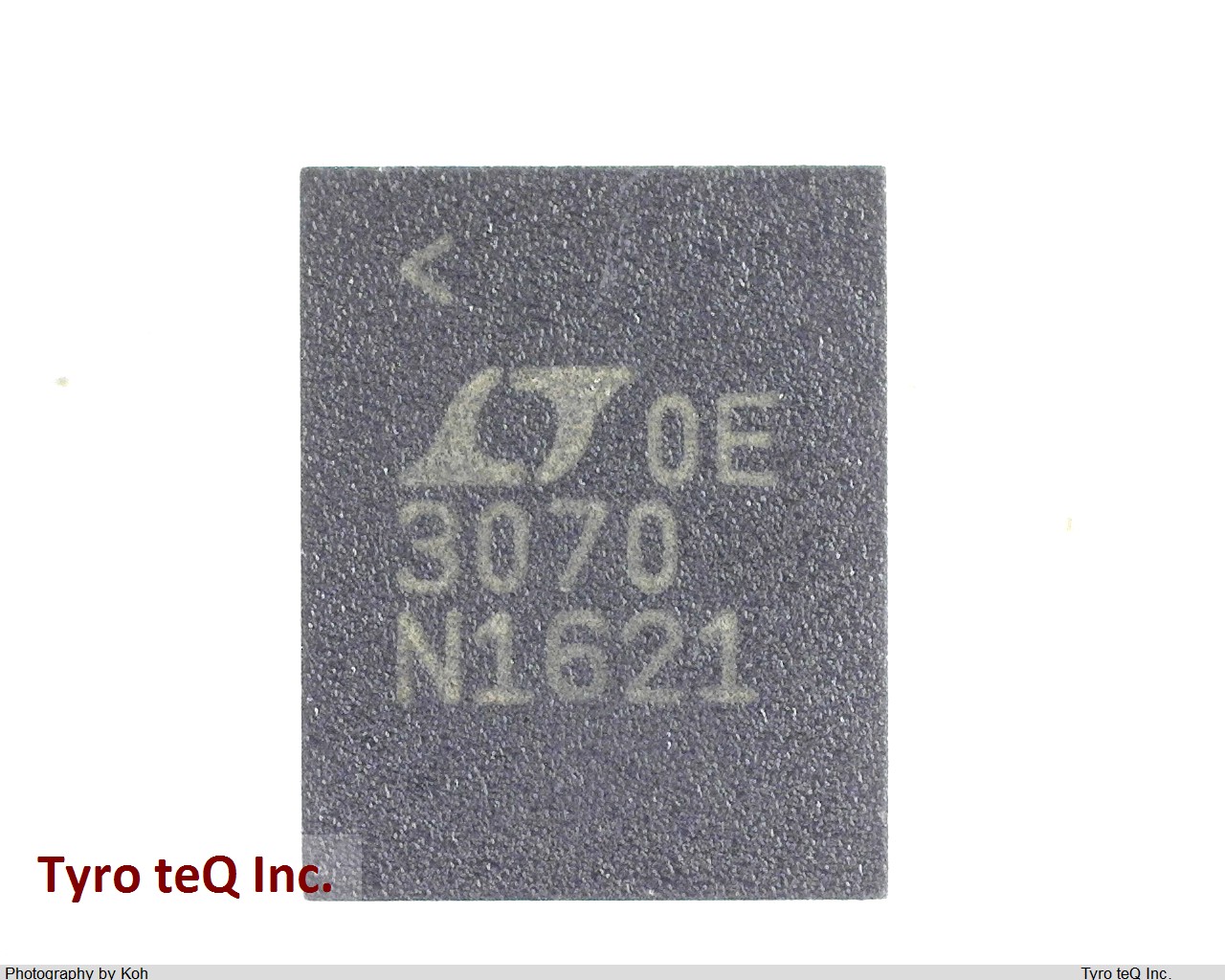

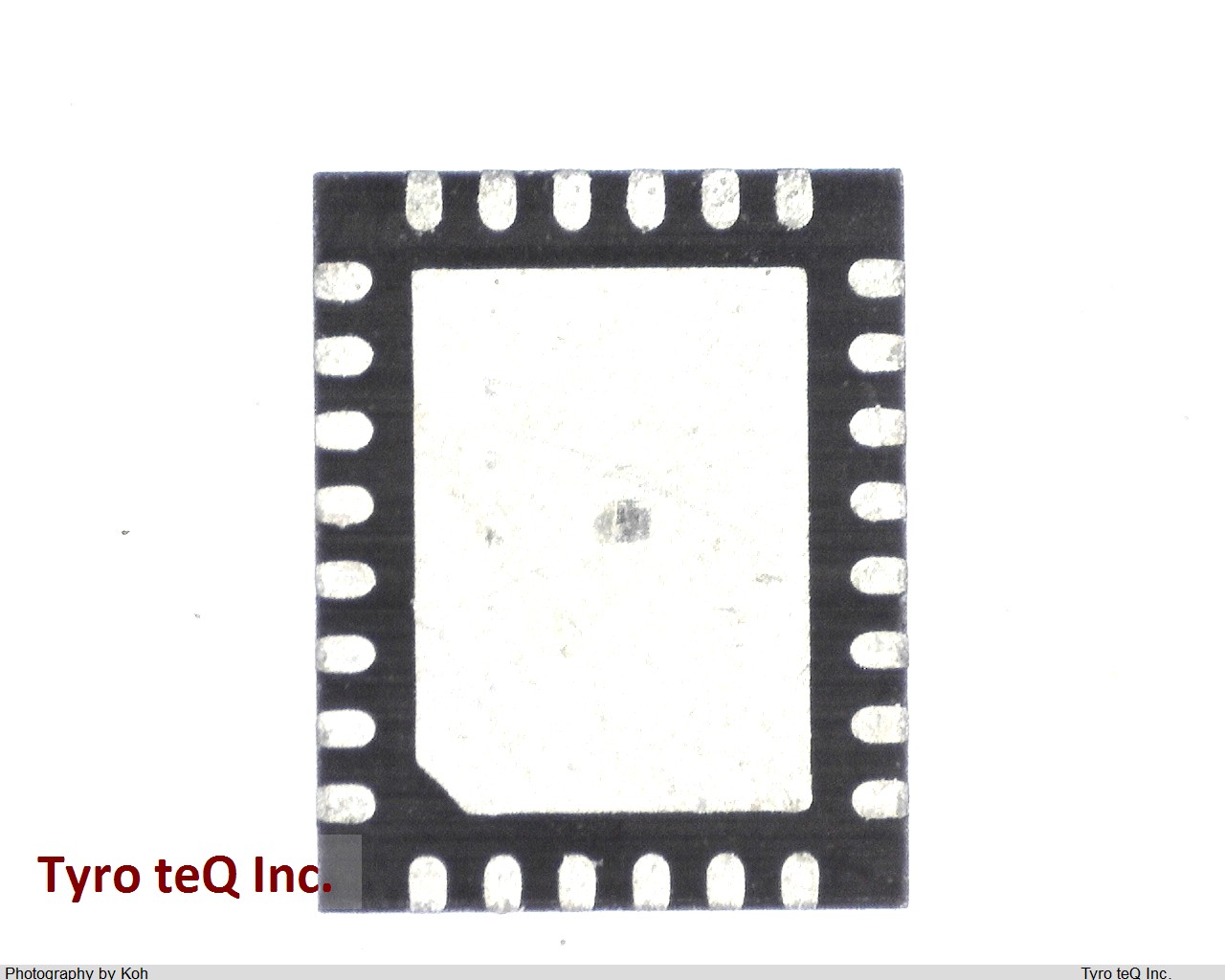

LT3070EUFD#TRPBF

Name: LT3070EUFD#TRPBF
Brand: LINEAR TECH
SKU: 220223314-0000-0000-0000

LT3070EUFD#TRPBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3070EUFD#TRPBF の詳細情報

型番	LT3070EUFD#TRPBF
メーカー	LINEAR TECH
Adjustability	ADJUSTABLE
DLA Qualification	Not Qualified
Dropout Voltage1-Max	0.15 V
Dropout Voltage1-Max (V)	0.15
Dropout Voltage1-Nom	0.085 V
Dropout Voltage1-Nom (V)	0.085
J-STD-609 Code	e3
JESD-30 Code	R-PQCC-N28
JESD-609 Code	e3
Length	5 mm
Length (mm)	5
Load Regulation-Max (%)	1.625
Load Regulation-Max(%)	1.625 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	28
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	-40
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	5 A
Output Current1-Max (A)	5
Output Voltage1-Max	1.8 V
Output Voltage1-Max (V)	1.8
Output Voltage1-Min	0.8 V
Output Voltage1-Min (V)	0.8
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC28,.16X.2,20
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Other Regulators
Surface Mount	YES
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	4 mm
Width (mm)	4
