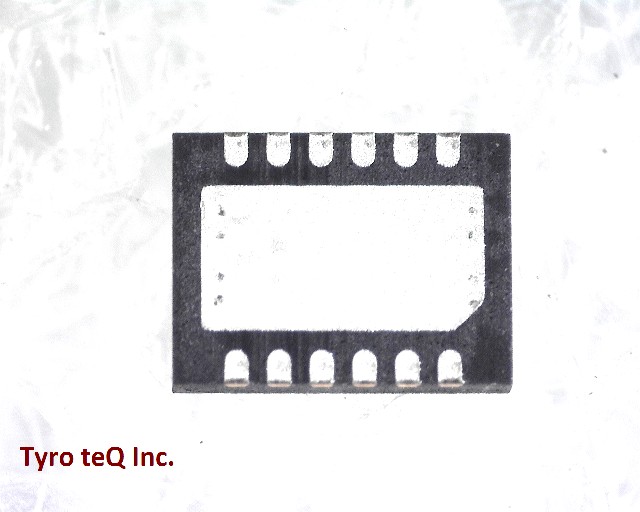

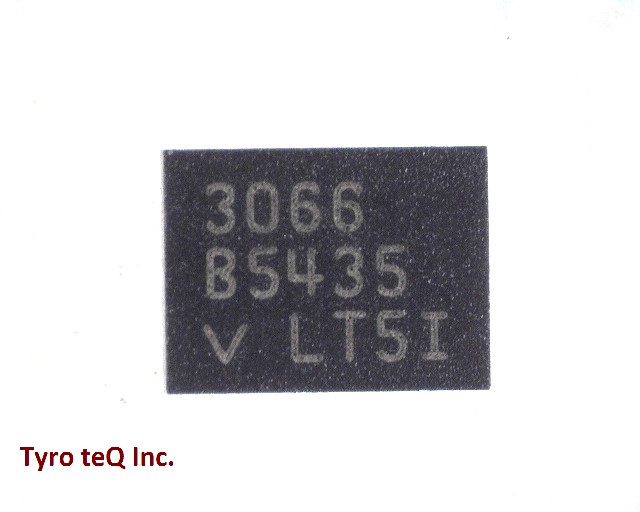

LT3066EDE#PBF

Name: LT3066EDE#PBF
Brand: LINEAR TECH
SKU: 220223252-0000-0000-0000

LT3066EDE#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3066EDE#PBF の詳細情報

型番	LT3066EDE#PBF
メーカー	LINEAR TECH
Dropout Voltage1-Max	0.51 V
Dropout Voltage1-Max (V)	0.51
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-N12
JESD-609 Code	e3
Length	4 mm
Length (mm)	4
Number of Functions	1
Number of Terminals	12
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	0
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.5 A
Output Current1-Max (A)	0.5
Output Voltage1-Max	19 V
Output Voltage1-Max (V)	19
Output Voltage1-Min	0.6 V
Output Voltage1-Min (V)	0.6
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Width	3 mm
Width (mm)	3
