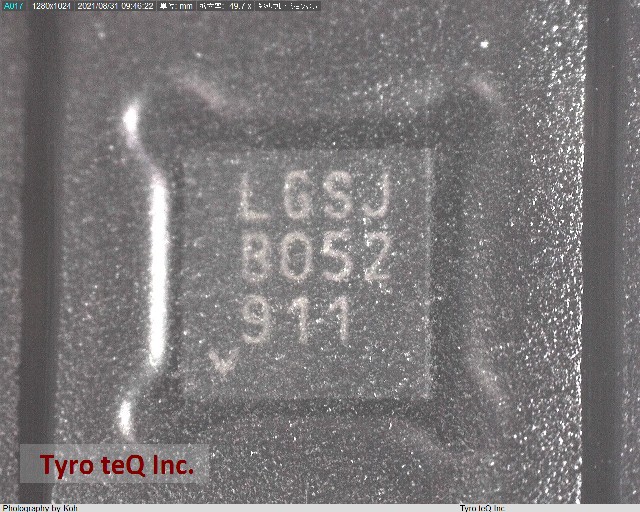

LT3042EDD#PBF

Name: LT3042EDD#PBF
Brand: LINEAR TECH
SKU: 220223328-0000-0000-0000

LT3042EDD#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3042EDD#PBF の詳細情報

型番	LT3042EDD#PBF
メーカー	LINEAR TECH
Adjustability	ADJUSTABLE
Dropout Voltage1-Nom (V)	0.35
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-N10
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	10
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	0
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min (Cel)	0
Output Current1-Max	0.2 A
Output Current1-Max (A)	0.2
Output Voltage1-Max	15 V
Output Voltage1-Max (V)	15
Output Voltage1-Min	0 V
Output Voltage1-Min (V)	0
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
