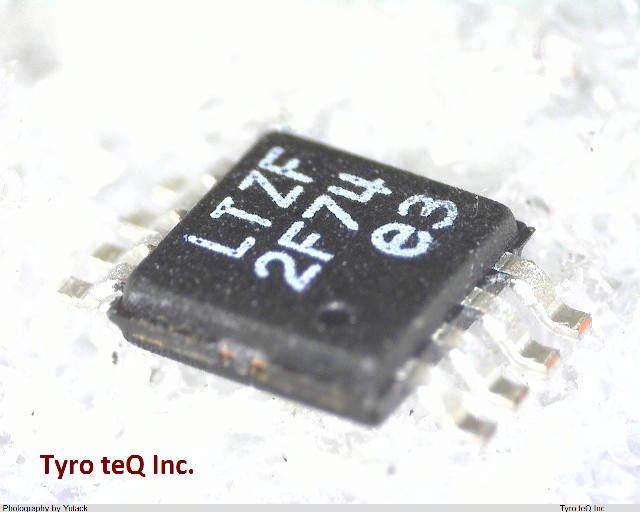

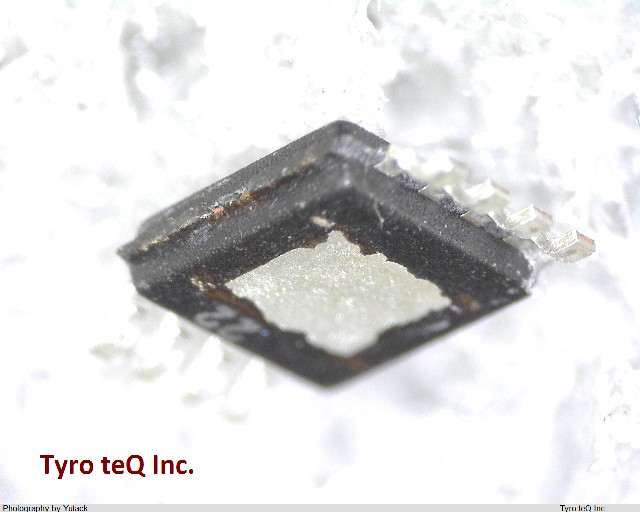

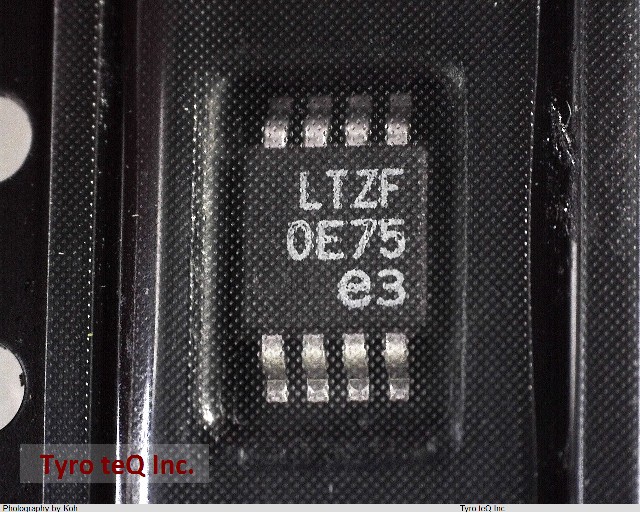

LT3010EMS8E#PBF データシート

Name: LT3010EMS8E#PBF
Brand: LINEAR TECH
SKU: 220110926-0000-0000-0000

LT3010EMS8E#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT3010EMS8E#PBF の詳細情報

型番	LT3010EMS8E#PBF
メーカー	LINEAR TECH
データシート
Adjustability	ADJUSTABLE
DLA Qualification	Not Qualified
Dropout Voltage1-Max	0.55 V
Dropout Voltage1-Max (V)	0.55
Dropout Voltage1-Nom	0.3 V
Dropout Voltage1-Nom (V)	0.3
Input-Output Voltage Differential-Max	80 V
Input-Output Voltage Differential-Max (V)	80
Input-Output Voltage Differential-Min	3 V
Input-Output Voltage Differential-Min (V)	3
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Line Regulation-Max (%/V)	0.013
Load Regulation-Max (%)	2.51
Load Regulation-Max(%)	2.5 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	0
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.05 A
Output Current1-Max (A)	0.05
Output Voltage1-Max	60 V
Output Voltage1-Max (V)	60
Output Voltage1-Min	1.275 V
Output Voltage1-Min (V)	1.275
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
