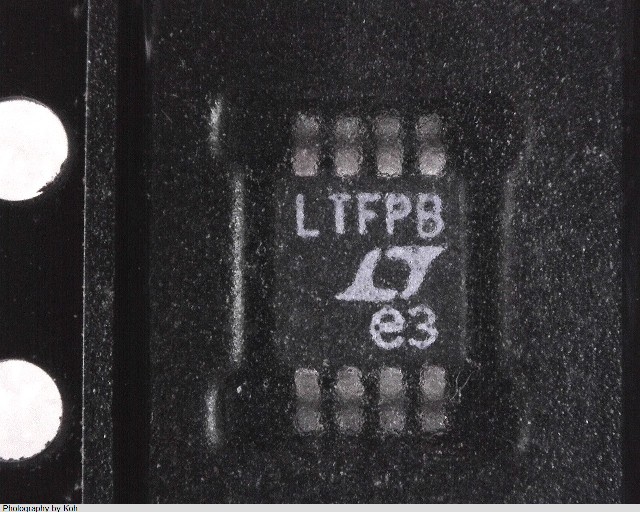

LT1999IMS8-10#PBF

Name: LT1999IMS8-10#PBF
Brand: LINEAR TECH
SKU: 220223523-0000-0000-0000

LT1999IMS8-10#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1999IMS8-10#PBF の詳細情報

型番	LT1999IMS8-10#PBF
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	-1500 uA
Average Bias Current-Max (IIB) (uA)	-1500
Common-mode Reject Ratio-Nom	120 dB
Common-mode Reject Ratio-Nom (dB)	120
DLA Qualification	Not Qualified
Input Offset Voltage-Max	1500 uV
Input Offset Voltage-Max (uV)	1500
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Slew Rate-Nom	3 V/us
Slew Rate-Nom (V/us)	3
Sub Category	Operational Amplifier
Supply Current-Max	7.1 mA
Supply Voltage Limit-Max	6 V
Supply Voltage Limit-Max (V)	6
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
