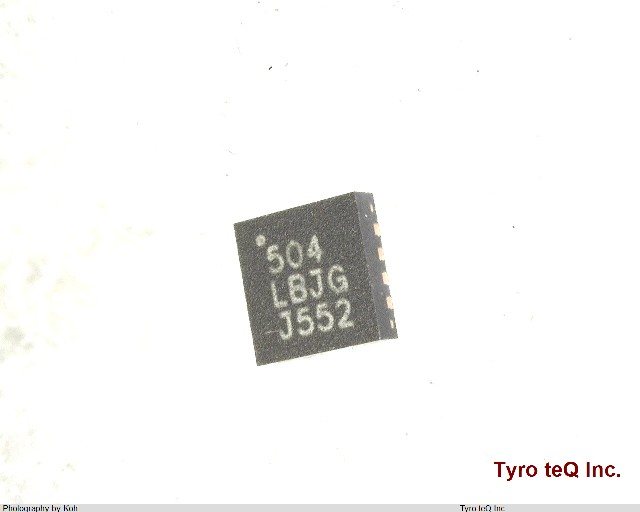

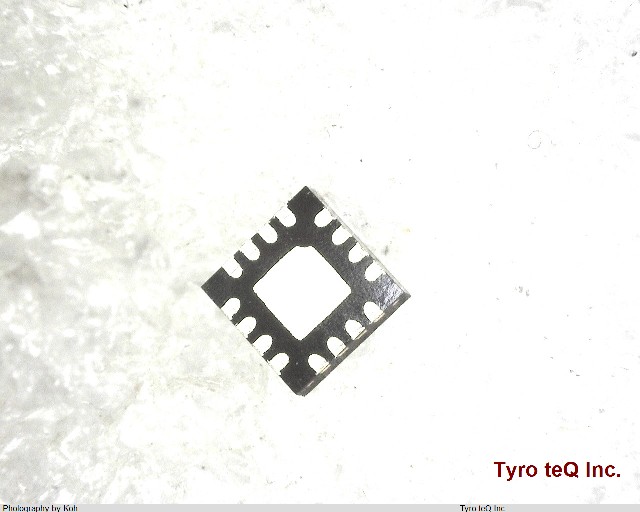

LT1993CUD-2

Name: LT1993CUD-2
Brand: LINEAR TECH
SKU: 400056671-0000-0000-0000

LT1993CUD-2 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1993CUD-2 の詳細情報

型番	LT1993CUD-2
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	15 uA
Average Bias Current-Max (IIB) (uA)	15
Common-mode Reject Ratio-Nom	70 dB
Common-mode Reject Ratio-Nom (dB)	70
DLA Qualification	Not Qualified
Input Offset Voltage-Max	10000 uV
Input Offset Voltage-Max (uV)	10000
J-STD-609 Code	e3
JESD-30 Code	S-PQCC-N16
JESD-609 Code	e0
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	0 V
Neg Supply Voltage Limit-Max (V)	0
Neg Supply Voltage-Nom (Vsup)	0 V
Negative Supply Voltage-Nom (V)	0
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC16,.12SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Slew Rate-Nom	1100 V/us
Slew Rate-Nom (V/us)	1100
Sub Category	Operational Amplifier
Supply Current-Max	112 mA
Supply Voltage Limit-Max	5.5 V
Supply Voltage Limit-Max (V)	5.5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
