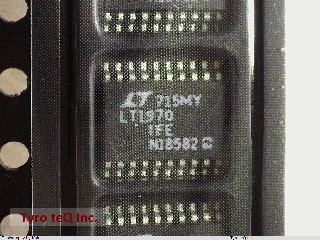

LT1970IFE#PBF

Name: LT1970IFE#PBF
Brand: LINEAR TECH
SKU: 220224341-0000-0000-0000

LT1970IFE#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1970IFE#PBF の詳細情報

型番	LT1970IFE#PBF
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Nom	105 dB
Common-mode Reject Ratio-Nom (dB)	105
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	800 uV
Input Offset Voltage-Max (uV)	800
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e3
Length	6.5 mm
Length (mm)	6.5
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage Limit-Max (V)	-18
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power	YES
Power Supplies	+-2.5/+-18/5/36 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Seated Height-Max (mm)	1.2
Slew Rate-Min	0.7 V/us
Slew Rate-Nom	1.6 V/us
Slew Rate-Nom (V/us)	1.6
Sub Category	Operational Amplifier
Supply Current-Max	13 mA
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
